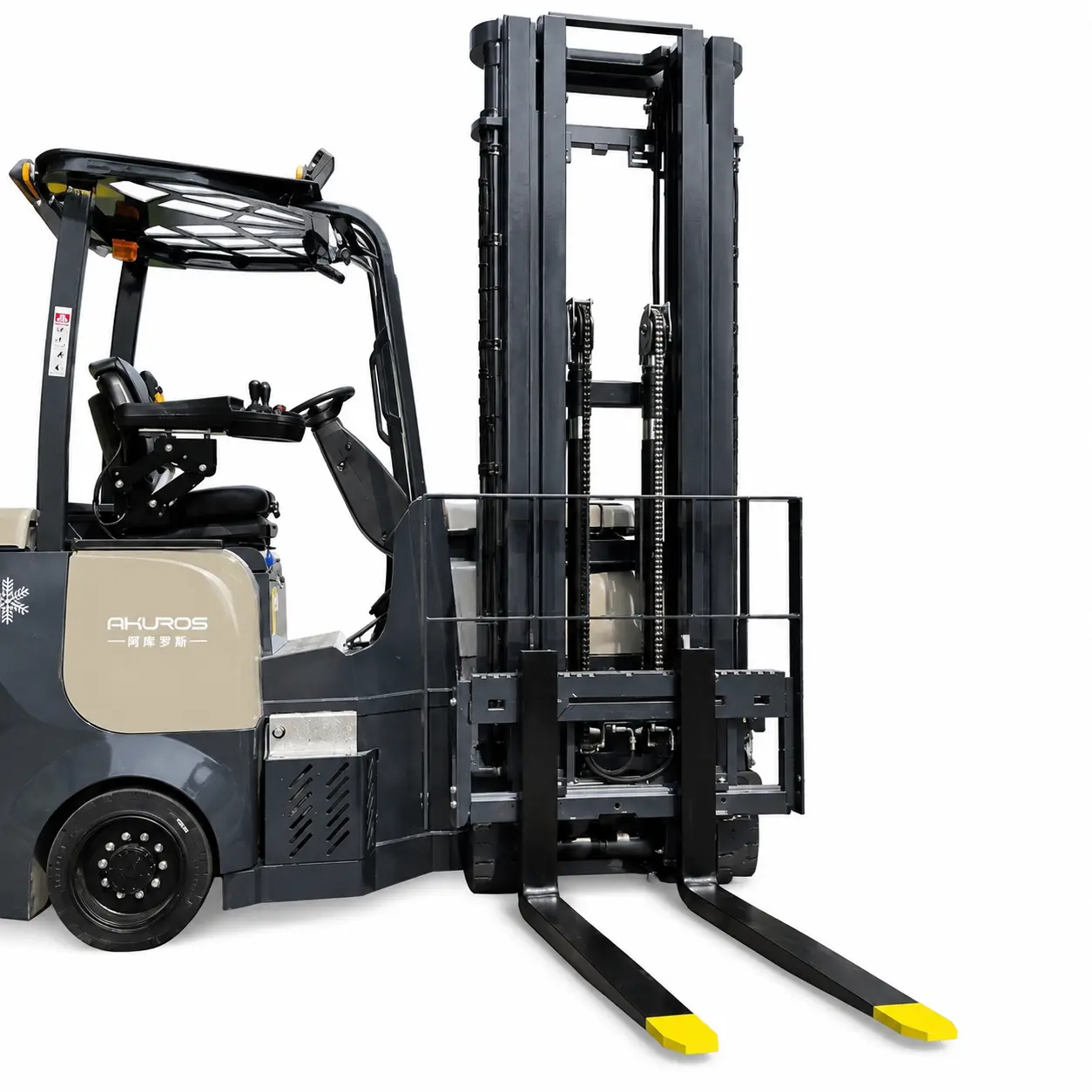

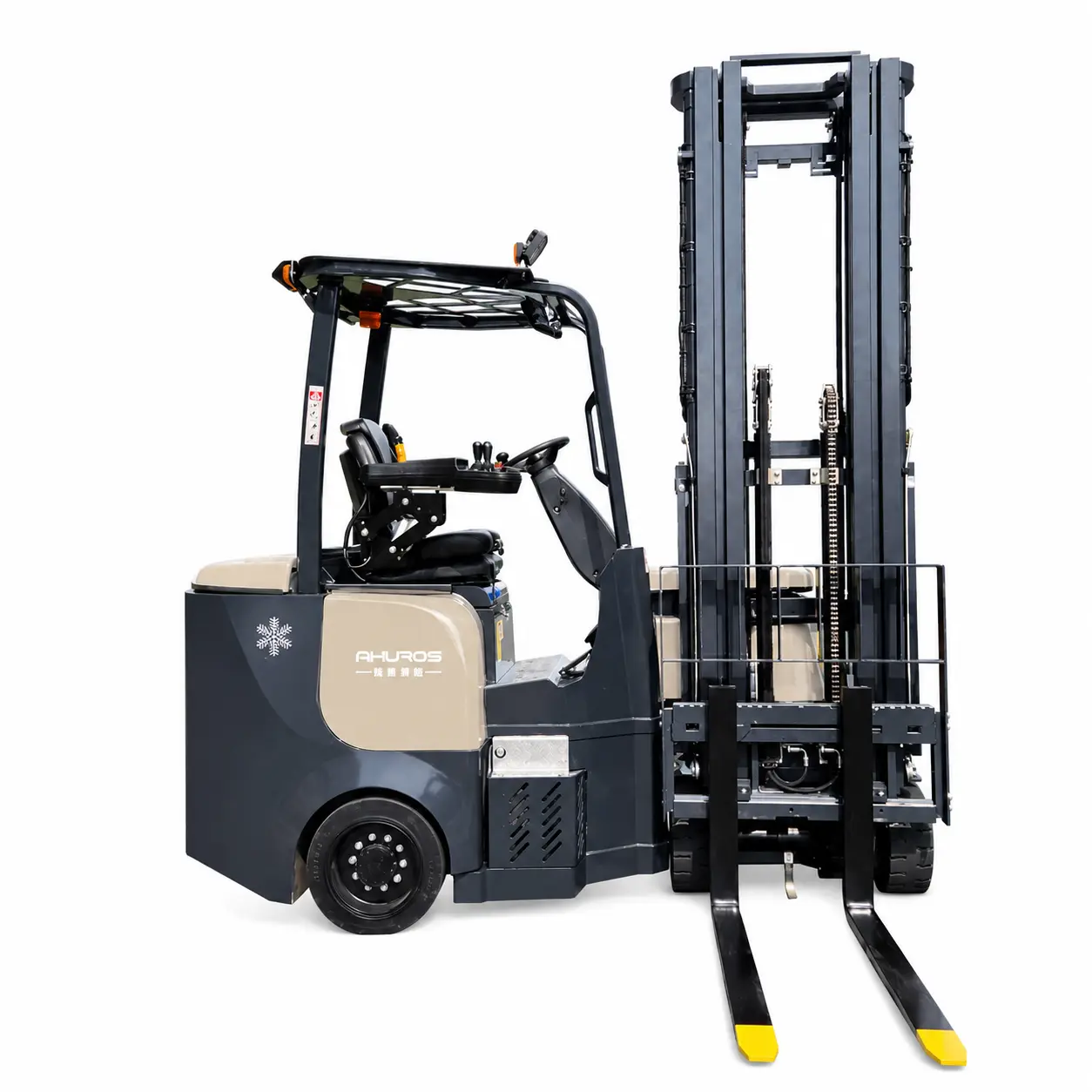

N25 Narrow Aisle Forklift
Hinge-Type Very Narrow Aisle Forklift for 2.5-Ton High-Lift Warehouse Storage
The Akuros N25 is a hinge-type very narrow aisle forklift designed for 2.5-ton pallet handling, high-bay racking, and high-density warehouse storage. It combines strong load capacity, high lift performance, and narrow aisle maneuverability in one truck.
The N25 has a rated load capacity of 2,500 kg and a 600 mm load center. Its mast can rotate up to 220° left and right, allowing operators to stack and retrieve pallets on both sides of the aisle without turning the whole truck body. This design helps reduce aisle width, increase rack rows, and improve pallet storage capacity.
With a lift height range of 4,300–15,000 mm, the N25 is suitable for warehouses that need to make better use of vertical space. Its minimum net aisle width is 2,000 mm, and its minimum 90° turning aisle width is 2,700 mm, making it suitable for high-density storage layouts where standard forklifts cannot provide the same space efficiency.
The N25 uses an 80V full AC system, electro-hydraulic proportional control, solid tires, integral side shift, and an operator protection system. Optional configurations include lithium battery, wireless imaging system, double-depth telescopic forks, and adjustable forks.
Capacity:
2.5 tons
Altura de elevação:
up to 15000 mm
Bateria:
80 volt
Integrated Technology Options Increase Efficiency
220° Rotating Mast for Very Narrow Aisle Operation
The N25 uses a hinge-type rotating mast that can rotate up to 220° left and right. This allows the operator to stack pallets on both sides of the aisle while the truck remains positioned inside the narrow working channel.
This structure helps reduce aisle width and increase pallet positions within the same warehouse footprint. For high-bay warehouses and high-density storage projects, the N25 provides an efficient way to improve storage capacity without requiring wider turning areas.

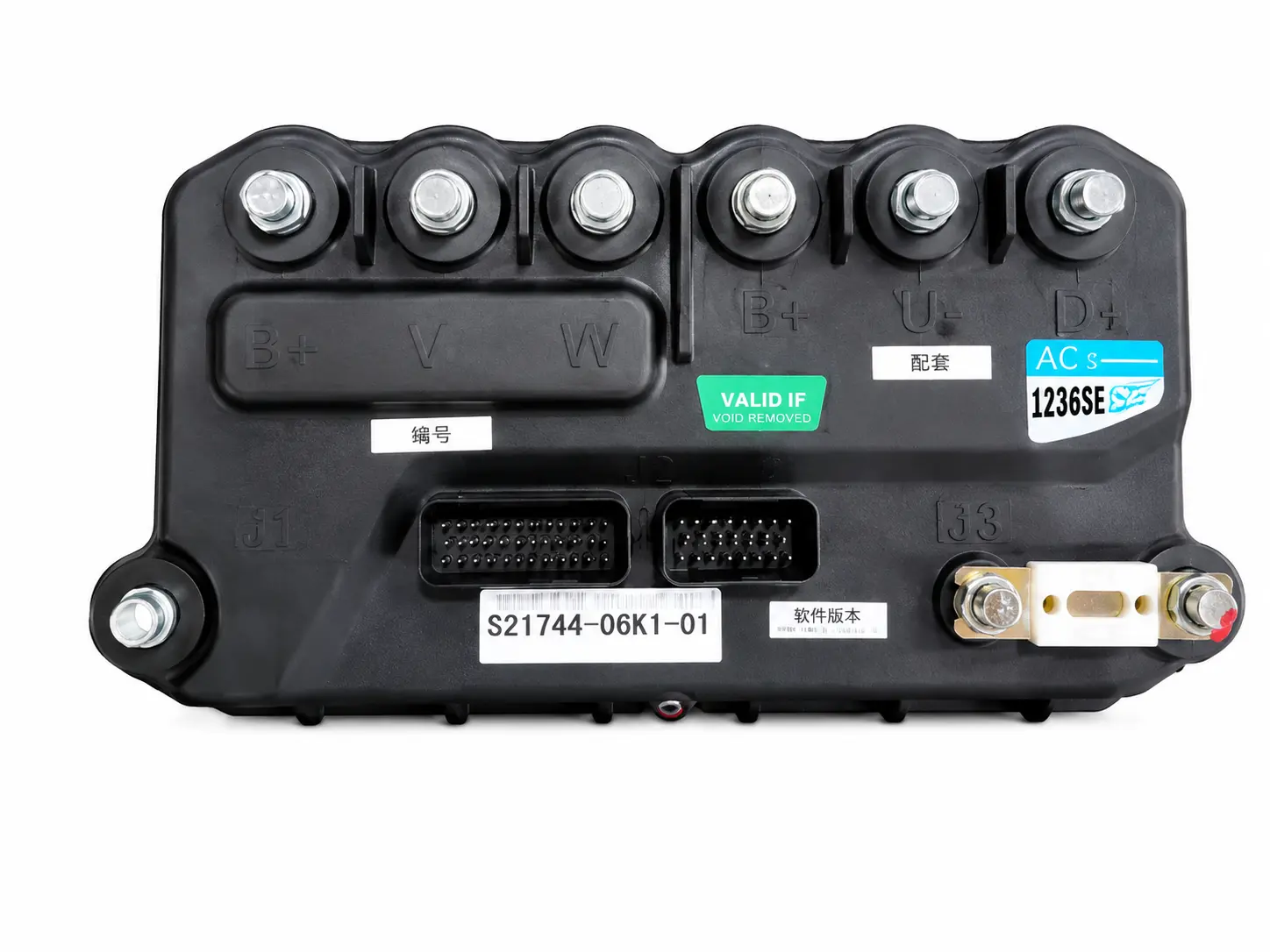

80V Full AC Drive System
The N25 is equipped with an 80V full AC controller and full AC travel and hydraulic motor system. This system supports efficient power output, lower heat generation, reduced failure rate, and longer service life during intensive warehouse operation.
The full AC system also helps reduce maintenance requirements because there is no carbon brush maintenance. This makes the N25 suitable for warehouses that need stable long-term operation, high lifting performance, and lower maintenance pressure.
Produtividade

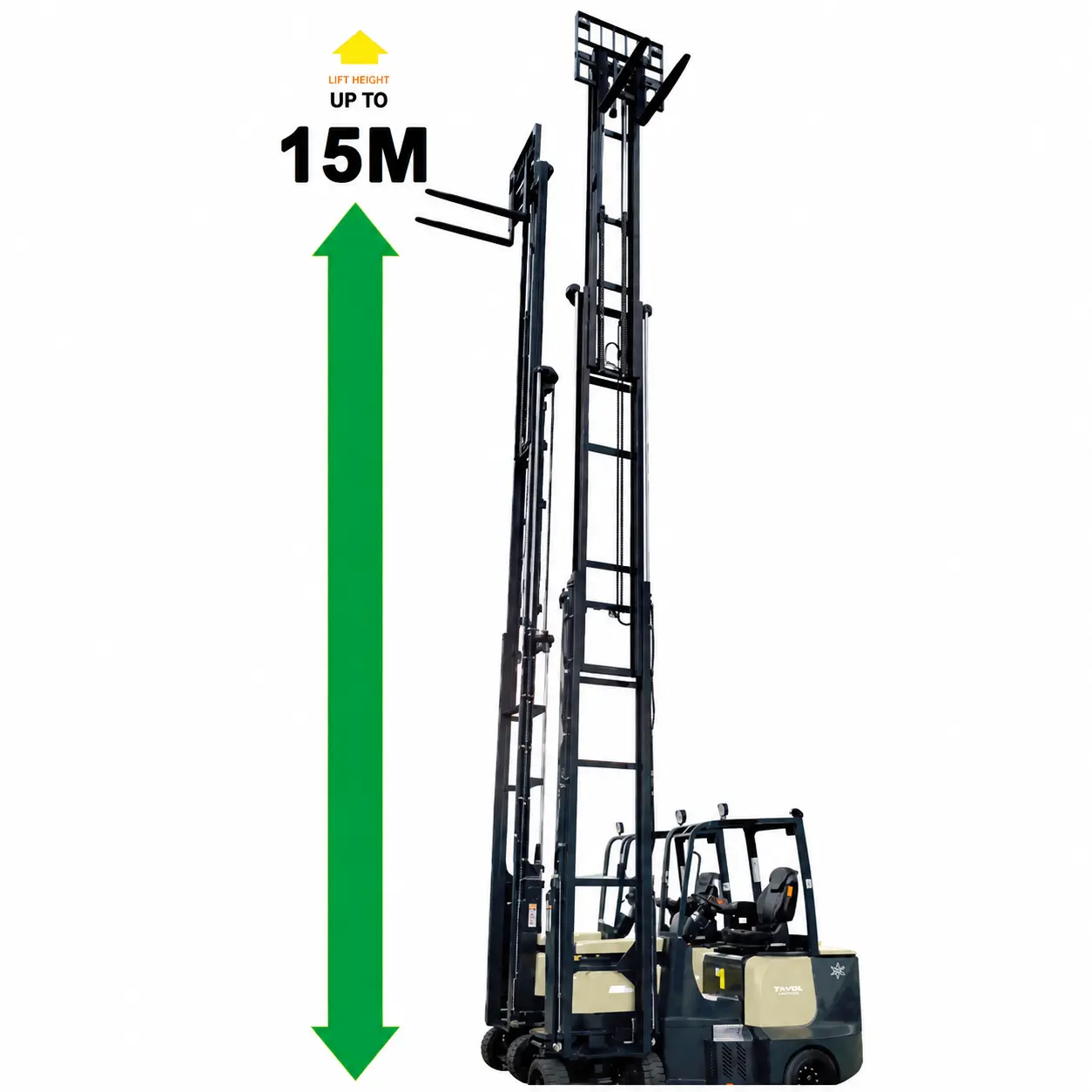

High Lift Performance up to 15,000 mm
The N25 offers a lift height range from 4,300 mm to 15,000 mm, allowing warehouses to make better use of vertical storage space. It is suitable for high-bay racking applications where pallet access, lifting stability, and rack layout must be carefully matched.
Akuros can help customers check the right mast height according to rack beam level, pallet load, building clearance, floor condition, and warehouse layout.
2.5-Ton Capacity for Heavy Pallet Handling
The N25 provides a 2,500 kg rated load capacity with a 600 mm load center, making it suitable for heavier palletized goods in high-density warehouse environments. It is a stronger option for customers who need both heavy-load handling and narrow aisle storage efficiency.
This makes the N25 suitable for food and beverage goods, cold chain pallets, industrial components, packaged materials, logistics inventory, and manufacturing warehouse storage.
Store More Goods in Less Space
The N25 is designed to help warehouses increase pallet storage capacity by reducing aisle width and improving rack layout efficiency. The very narrow aisle design allows more rack rows to be placed in the same warehouse area, helping customers store more goods without expanding the building.
For logistics centers, cold storage warehouses, food distribution facilities, and high-density pallet storage projects, this can improve warehouse space utilization and reduce the cost per pallet position.
Maneuverability

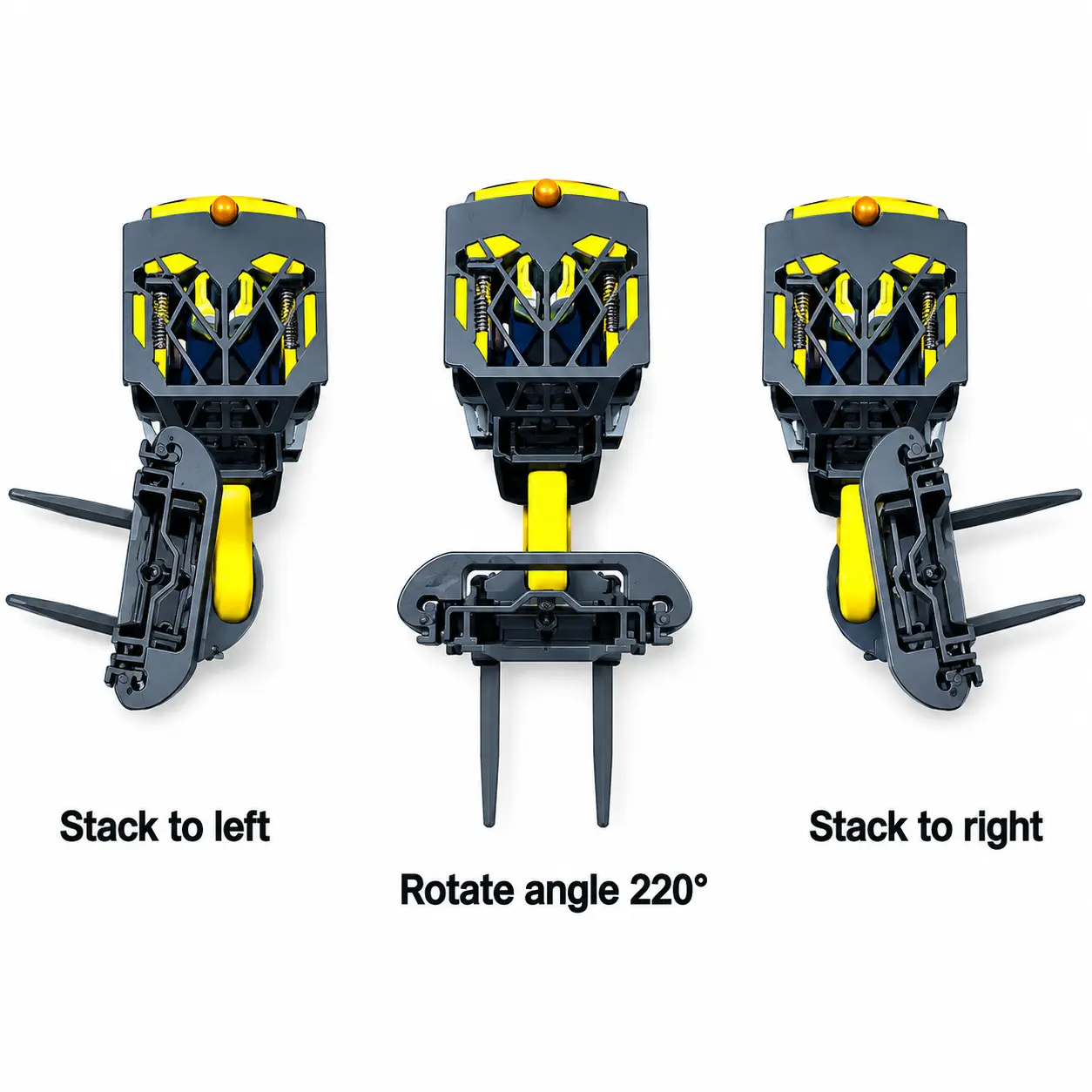

220° Left and Right Mast Rotation
The N25 rotating mast allows operators to stack to the left and right without turning the whole truck body. This improves handling flexibility in narrow aisles and helps reduce the working channel width.
Minimum Net Channel Width of 2,000 mm
The N25 can work in a minimum net aisle width of 2,000 mm, depending on pallet size and warehouse layout. This makes it suitable for very narrow aisle racking systems where storage density and high lifting height are key priorities.

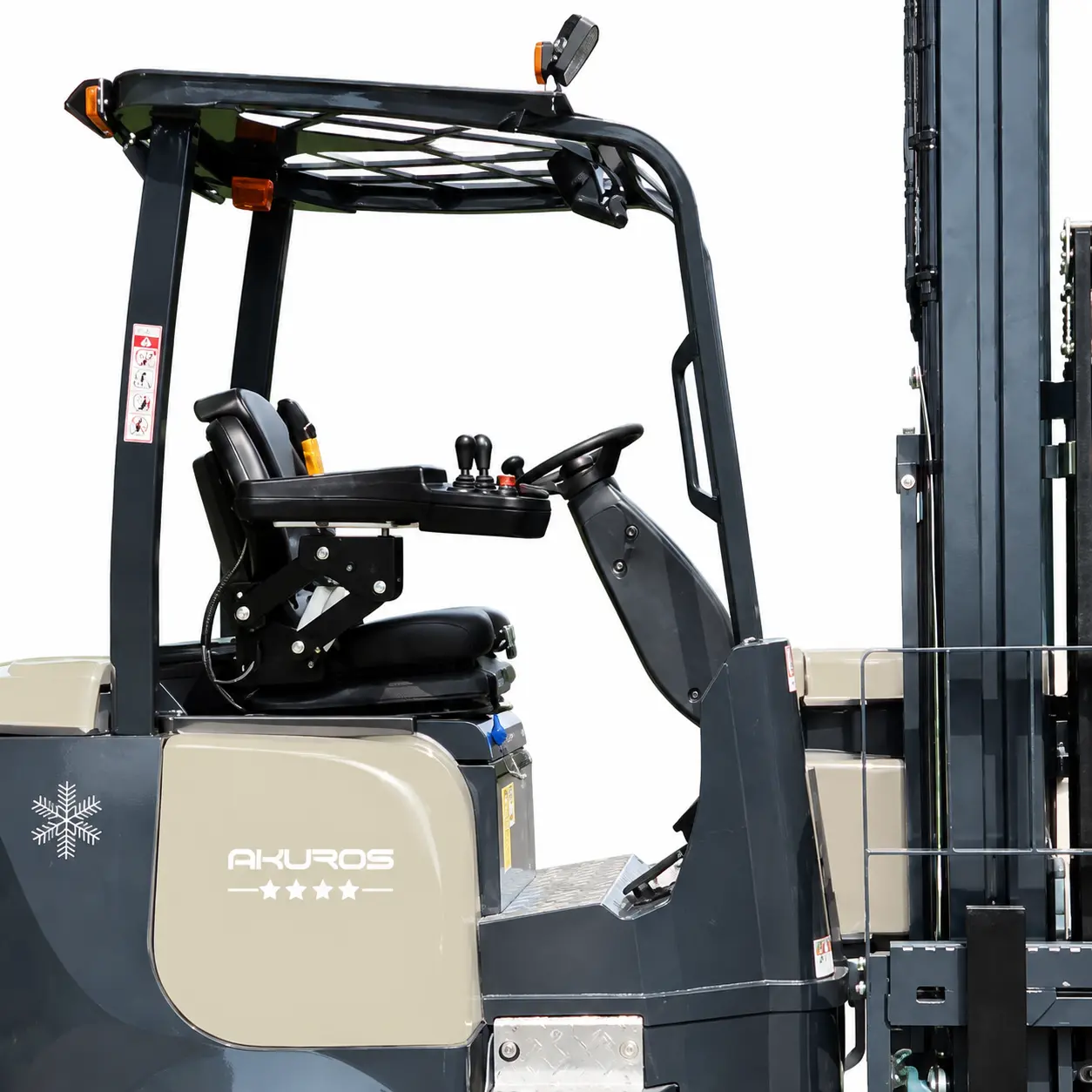

Fingertip Control Handrail
The N25 is equipped with a fingertip control handle that integrates lifting, side shifting, tilting, horn, gear switching, micro-adjustment, and attachment control functions. This design allows operators to control key truck movements more easily and accurately.
The fingertip control system is especially useful for high-lift operation in narrow aisles, where small adjustments and smooth control are critical for safe and efficient pallet placement.
Eco-Performance
The N25 uses an electric power system, making it suitable for indoor warehouse environments where clean operation is required. Electric operation helps avoid on-site exhaust emissions during daily pallet handling.
The 80V full AC system is designed for efficient energy use during travel, lifting, steering, and hydraulic operation. This helps improve operating efficiency while reducing unnecessary energy waste in high-frequency warehouse applications.
The N25 can be equipped with a lithium battery option for faster charging, lower maintenance, and more flexible daily operation. Lithium battery configuration is suitable for warehouses with frequent use, opportunity charging, and longer working schedules.
Options
Lithium Battery Option
The N25 can be configured with a lithium battery option for faster charging, lower daily maintenance, and flexible use in high-frequency operations. Lithium battery is suitable for warehouses that need opportunity charging and longer working schedules.
Wireless Imaging System
The optional wireless imaging system helps operators observe fork position and pallet entry during high-level stacking. This is useful for narrow aisles, tall racks, and applications requiring more accurate pallet placement.
Double-Depth Telescopic Forks
The N25 can be equipped with optional double-depth telescopic forks for deeper pallet storage applications. This option is suitable for warehouses that want to combine narrow aisle operation with double-depth storage layouts.
Aplicações

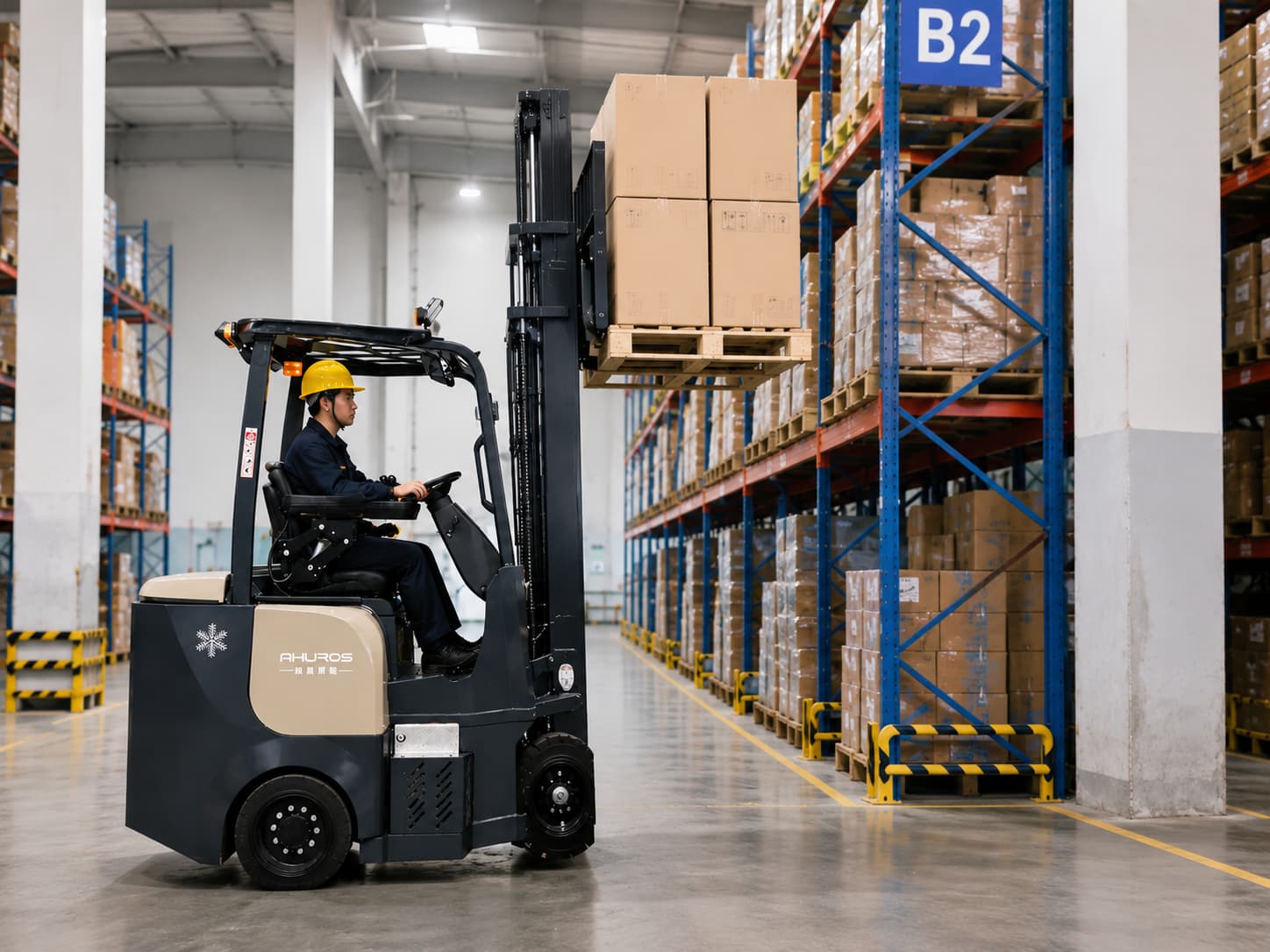

Very Narrow Aisle Warehouses
The N25 is designed for very narrow aisle warehouse layouts where storage density is critical. Its rotating mast allows pallet stacking on both sides of the aisle while reducing aisle width.
High-Bay Pallet Storage
With lift height options up to 15,000 mm, the N25 is suitable for high-bay racking systems where warehouses need to maximize vertical storage space.
Heavy Pallet Storage Areas
With a 2.5-ton rated load capacity, the N25 is suitable for heavier palletized goods in warehouses that need both load capacity and narrow aisle operation.
