VNA Racking System

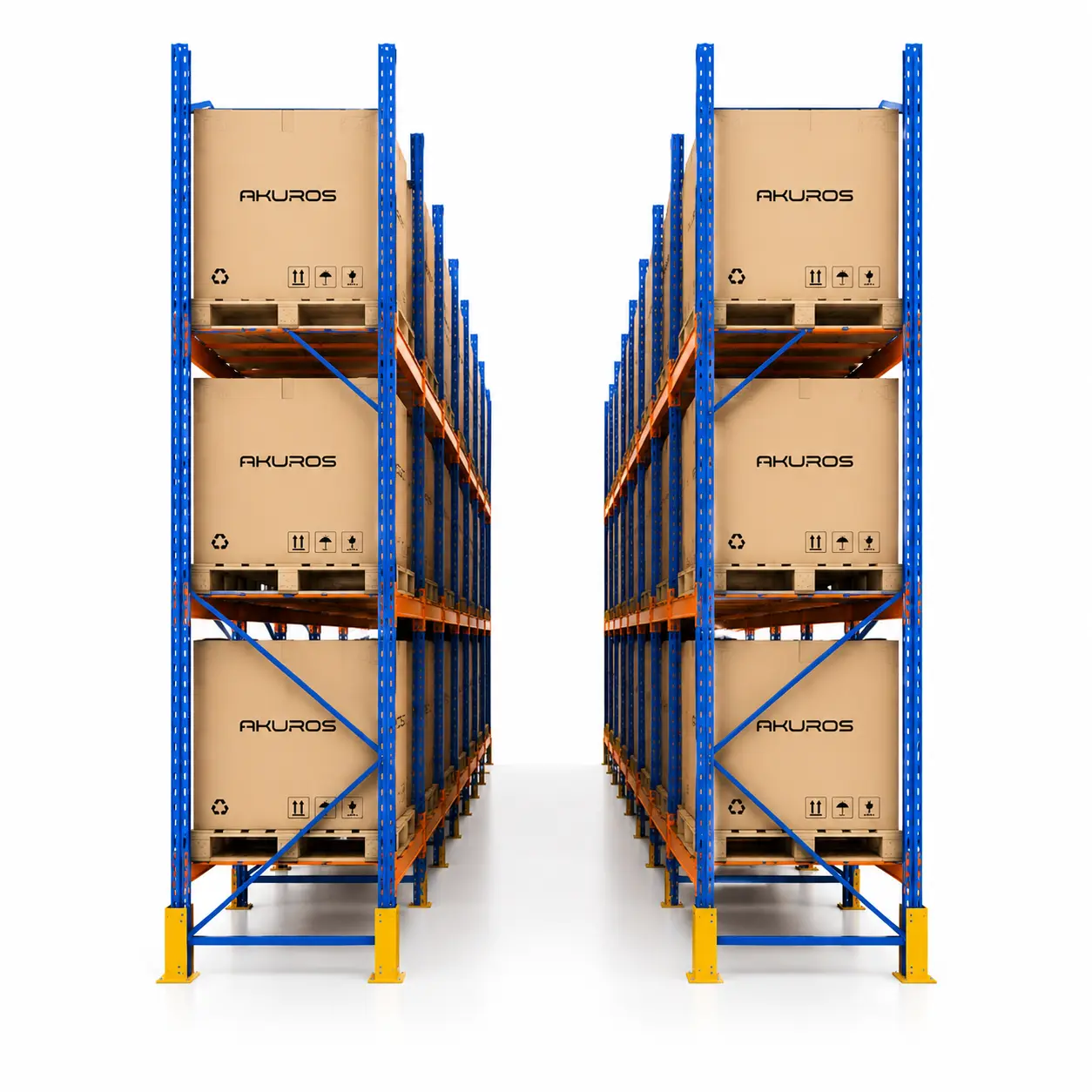

Very Narrow Aisle Racking for High-Density Pallet Storage and 100% Direct Access
Akuros VNA racking system is a high-density pallet storage solution built for very narrow aisle warehouse operation. It is designed to reduce aisle width, increase pallet positions, and make better use of warehouse height while still allowing direct access to each pallet.
Unlike double deep, drive-in, or shuttle racking systems, VNA racking does not sacrifice pallet selectivity. Each pallet can be accessed independently, which makes it suitable for warehouses with many SKUs, different batches, frequent stock changes, and high inventory visibility requirements.
The system usually works with very narrow aisle forklifts, articulated forklifts, or man-up turret trucks. Depending on the warehouse design, VNA systems can use mechanical rail guidance, wire guidance, magnetic guidance, or free-ranging operation with suitable trucks.
VNA racking is especially suitable for logistics centers, manufacturing warehouses, cold storage facilities, food distribution centers, e-commerce warehouses, and high-bay storage projects that need both high storage capacity and flexible pallet access.
Storage Type:
Very narrow aisle pallet racking
Largeur de l'allée :
Approximately 1,600–2,200 mm, depending on forklift type and pallet size
Pallet Access:
100% direct pallet access
Integrated Technology Options Increase Efficiency
Narrow Aisle Layout for Higher Storage Density

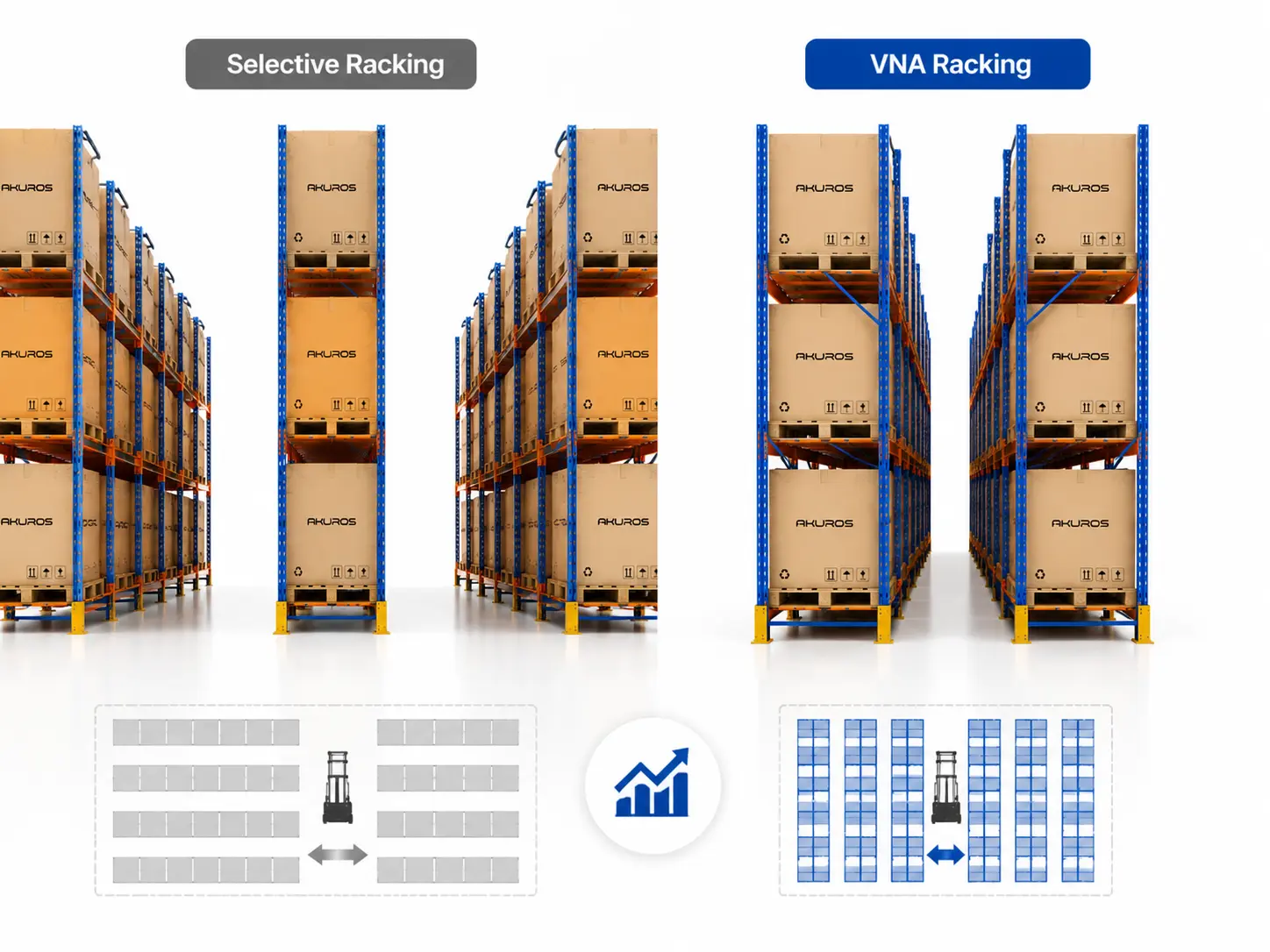

VNA racking reduces aisle width compared with conventional selective pallet racking. This allows more rack rows to be arranged within the same warehouse footprint, increasing the number of pallet positions without expanding the building.
For warehouses where floor space is expensive or limited, VNA racking provides a practical way to improve storage capacity while keeping flexible pallet access.
100% Direct Pallet Access
Unlike many dense storage systems, VNA racking allows direct access to every pallet position. Operators can store and retrieve any pallet without first moving other pallets.
This makes VNA racking suitable for warehouses with many SKUs, mixed inventory, frequent order changes, and inventory management requirements that depend on clear pallet location control.

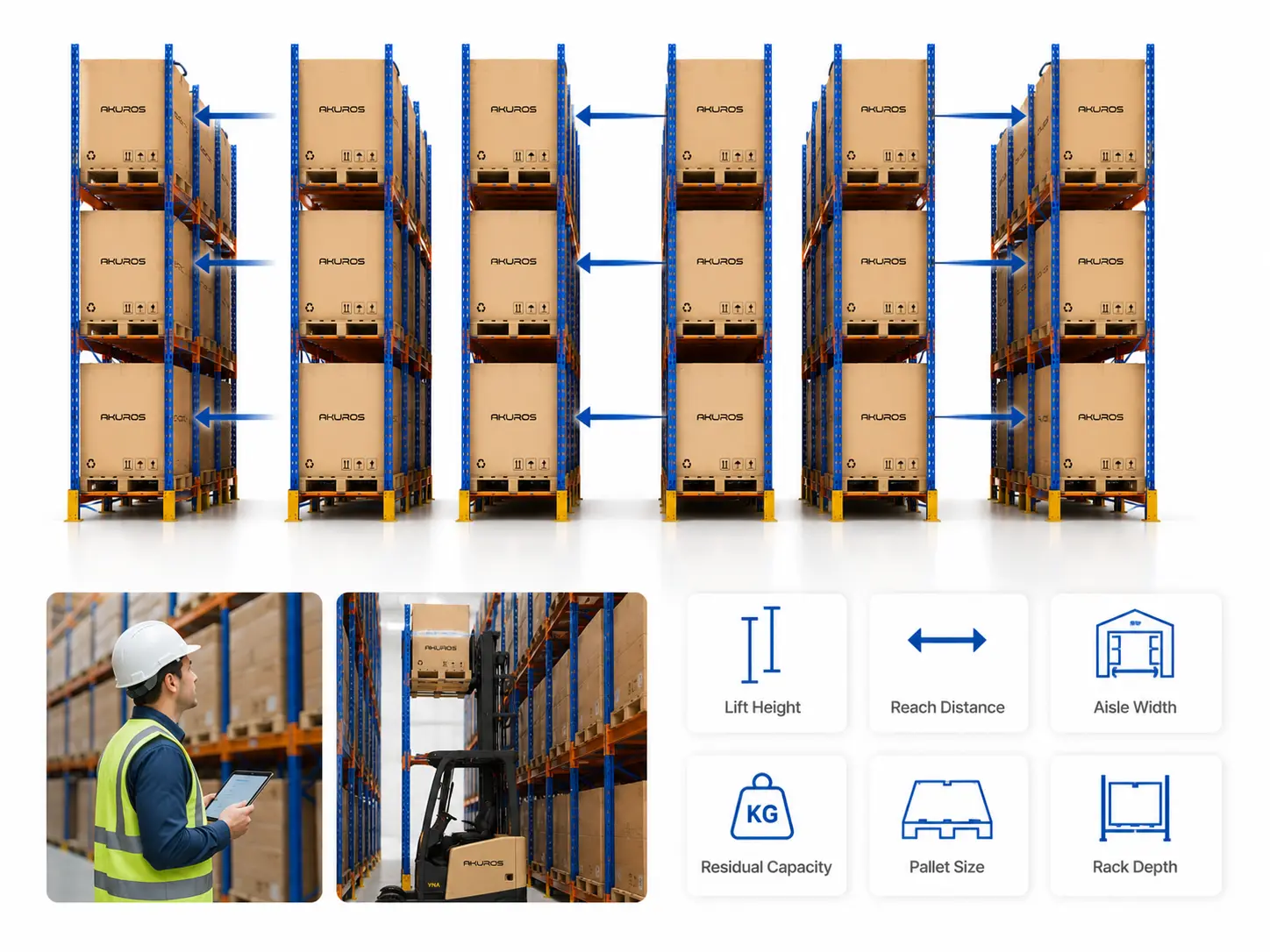

Akuros can help check forklift lift height, reach distance, aisle width, residual capacity, pallet size, and rack depth before confirming the layout. This reduces the risk of selecting a rack system that cannot be handled efficiently by the available truck.
Productivité

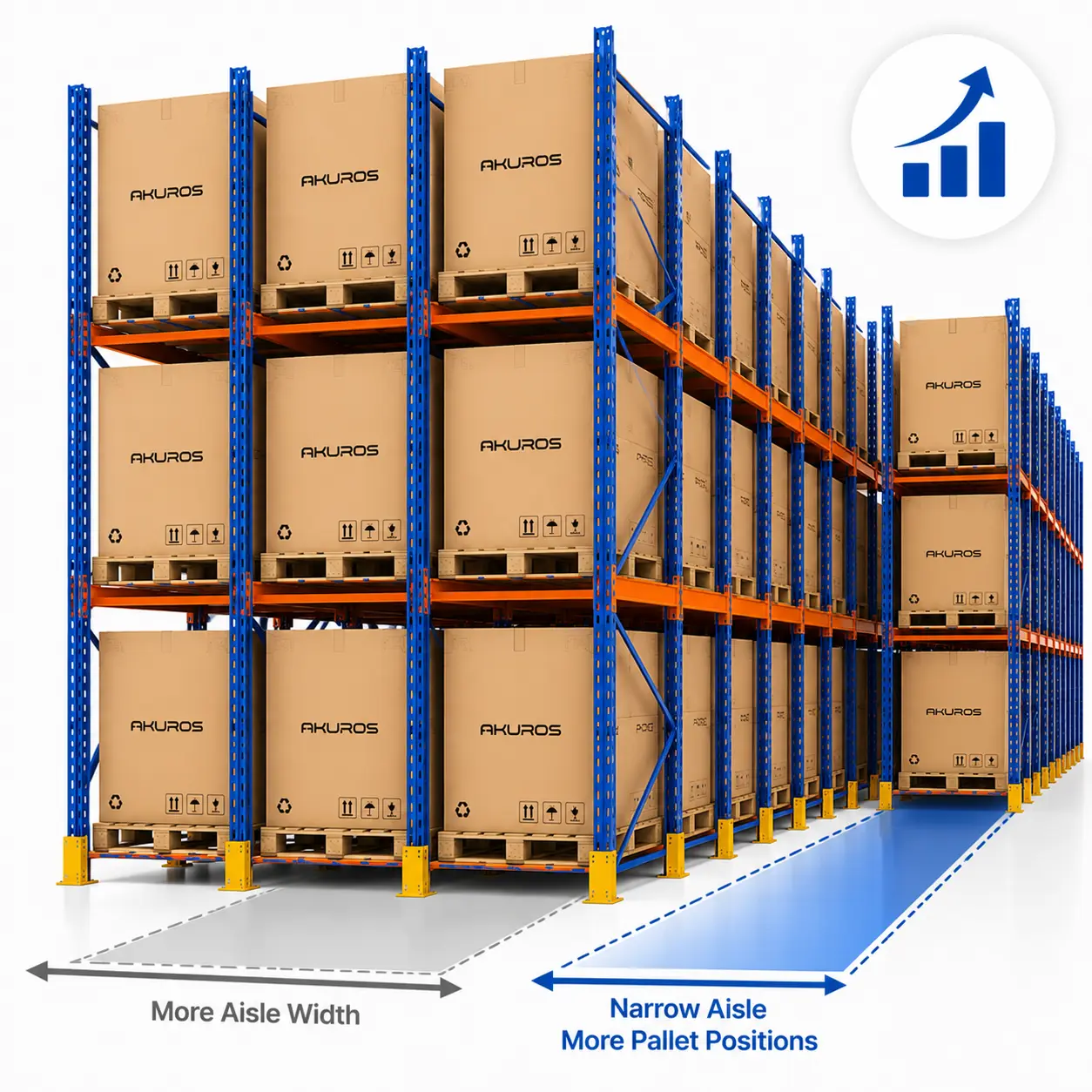

More Pallet Positions in the Same Warehouse
By narrowing working aisles, VNA racking helps increase the number of rack rows and pallet locations in the same building area. This improves warehouse storage density without moving to fully automated systems.
For customers who want to increase capacity inside an existing warehouse, VNA racking can often provide a strong balance between cost, capacity, and operational flexibility.

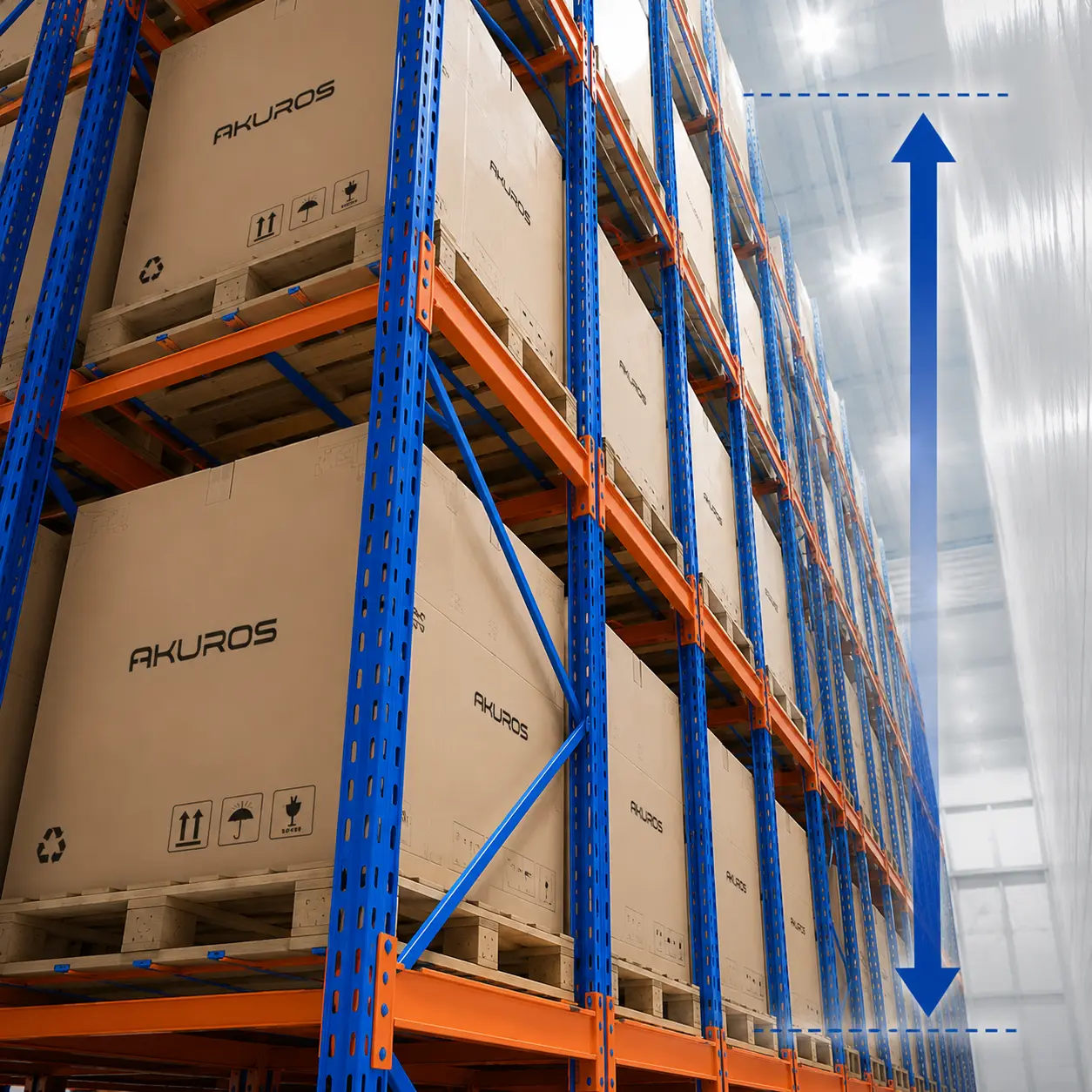

High Vertical Space Utilization
VNA racking is suitable for high-bay warehouse designs. When matched with suitable VNA forklifts or turret trucks, the system can use taller rack heights and improve total storage capacity.
This is useful for warehouses with high clear height, cold storage facilities with expensive construction cost, and logistics centers that need to maximize cubic storage space.
Direct Picking and Storage Flexibility
Because every pallet remains accessible, warehouse teams can manage mixed SKUs more easily. This improves flexibility for picking, replenishment, stock rotation, and customer-specific inventory control.
VNA racking is especially practical for third-party logistics warehouses, manufacturing warehouses, and distribution centers with diversified product storage.
Eco-Performance
Improved Use of Existing Building Space
VNA racking helps warehouses store more pallets within the same building footprint. This can reduce the need for new construction, extra warehouse rental, or additional cold storage rooms.
For cold storage projects, better space utilization can also help reduce the cost per pallet position in temperature-controlled environments.
Efficient Use of Warehouse Height
By using high rack structures and suitable VNA equipment, warehouses can take advantage of vertical space that may be underused in conventional racking layouts.
This helps improve total storage capacity without increasing the warehouse floor area.
Modular and Adjustable Structure
VNA racking is based on a modular pallet racking structure. Beam levels can be adjusted, rack accessories can be added, and the layout can be modified according to future product changes.
This supports long-term flexibility and better lifecycle value for the warehouse.
Ergonomics
VNA racking is often used with guided forklifts or turret trucks. Guidance systems help keep the truck aligned in narrow aisles, improving operating stability and reducing steering workload inside the aisle.
Depending on the project, the system can be designed for mechanical rail guidance, wire guidance, magnetic guidance, or free navigation with suitable trucks.
A properly designed VNA system helps operators position pallets more accurately in high and narrow rack aisles. Correct aisle width, rack clearance, pallet overhang, and truck specification are critical for safe operation.
Akuros can help check these details before final layout design.
Column guards, guide rails, end barriers, frame protectors, safety pins, pallet supports, and back mesh can be selected according to warehouse safety requirements.
These accessories help reduce forklift impact risk and protect the racking structure during daily operation.
Options
Rack Height Options
VNA racking can be designed for medium-height or high-bay storage according to warehouse clear height, pallet load, forklift lift height, and floor condition.
Upright Frame Options
Upright frame specifications can be selected according to rack height, beam load, pallet weight, seismic requirements, and warehouse application.
Guidance System Options
VNA racking can be matched with mechanical rail guidance, wire guidance, magnetic guidance, or other truck guidance methods according to project requirements.
Applications
Very Narrow Aisle Warehouses
VNA racking is designed for warehouses that need to reduce aisle width and increase storage density while maintaining direct pallet access.
High-Bay Pallet Storage
VNA racking is suitable for high rack storage applications where warehouses need to use vertical space more effectively.
E-Commerce and Retail Distribution
For warehouses with many SKUs and fast inventory movement, VNA racking helps increase storage positions while keeping each pallet location accessible.
