N30 Narrow Aisle Forklift

3.0-Ton Hinge-Type Narrow Aisle Forklift for Heavy Pallet Storage and High-Bay Warehouses

Overview

Specifications

Overview

Specifications

Integrated Technology Options Increase Efficiency

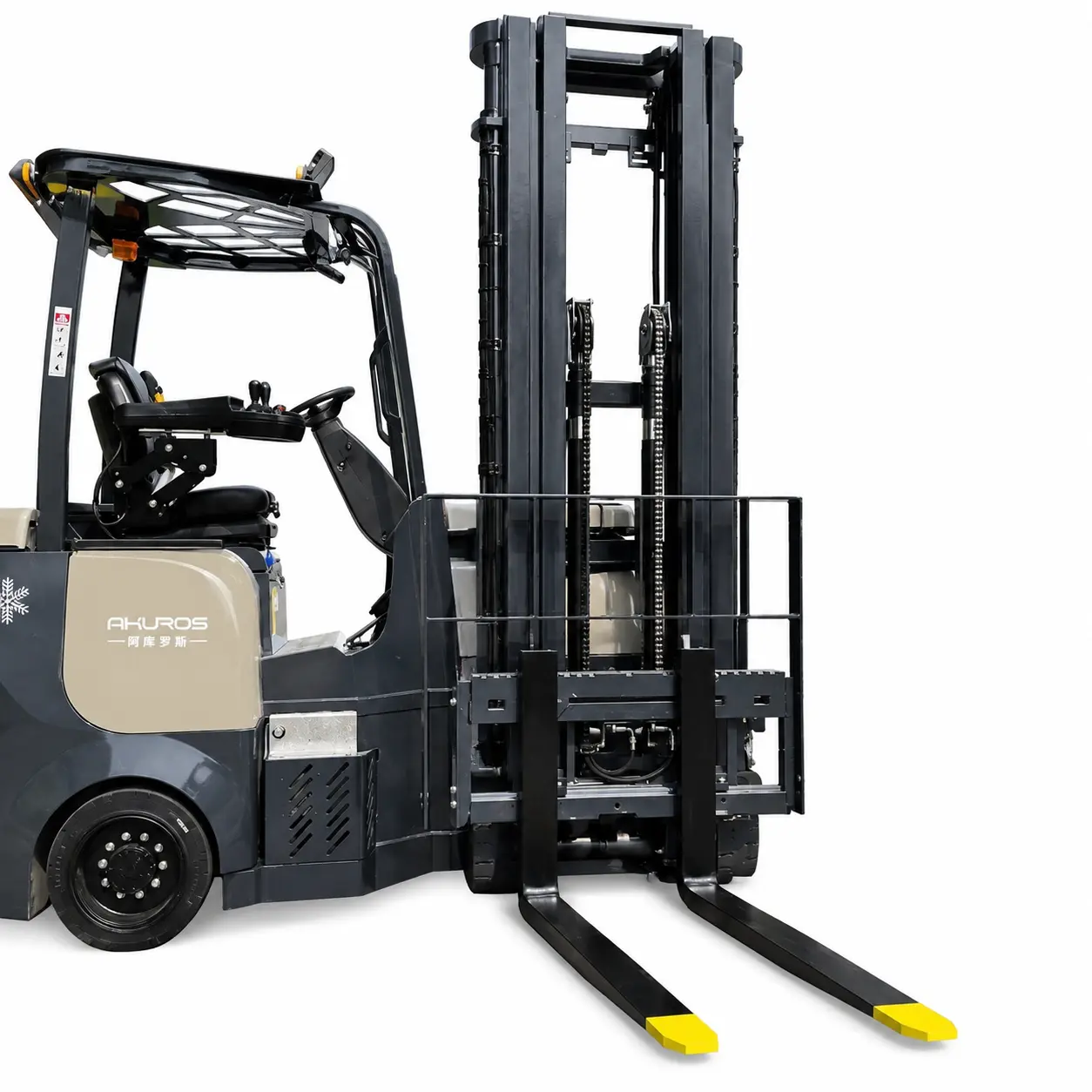

Heavy-Duty 220° Rotating Mast

The N30 uses a hinge-type mast that rotates 220° left and right, allowing the operator to complete left-side and right-side pallet stacking inside a very narrow working aisle. This structure reduces the need for wide turning space and improves rack layout flexibility.

For heavy pallet storage, this rotating mast design gives the N30 a strong advantage over conventional counterbalance forklifts. It allows the warehouse to keep higher load capacity while using a narrower aisle layout, helping improve the total number of pallet positions in the building.

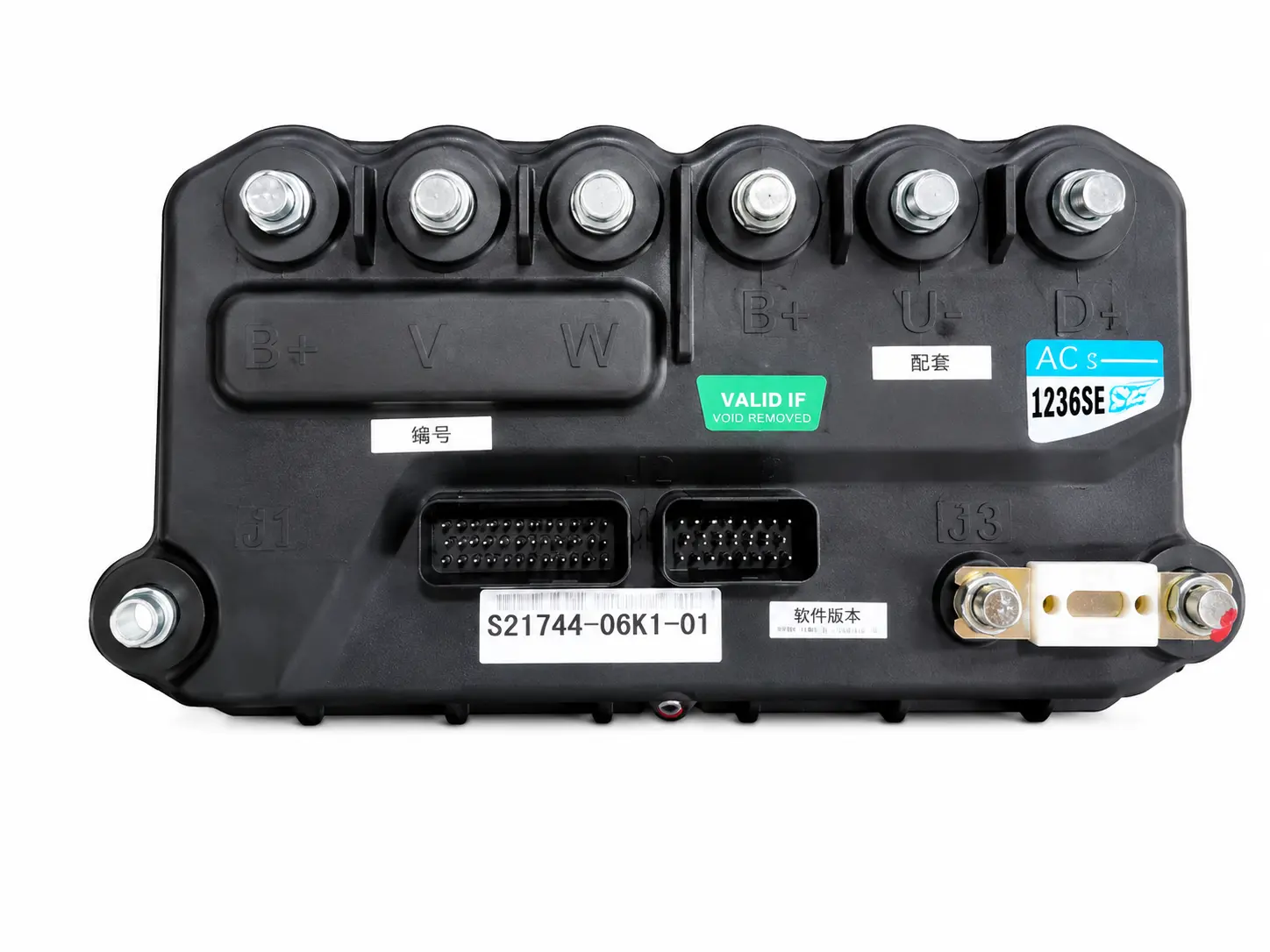

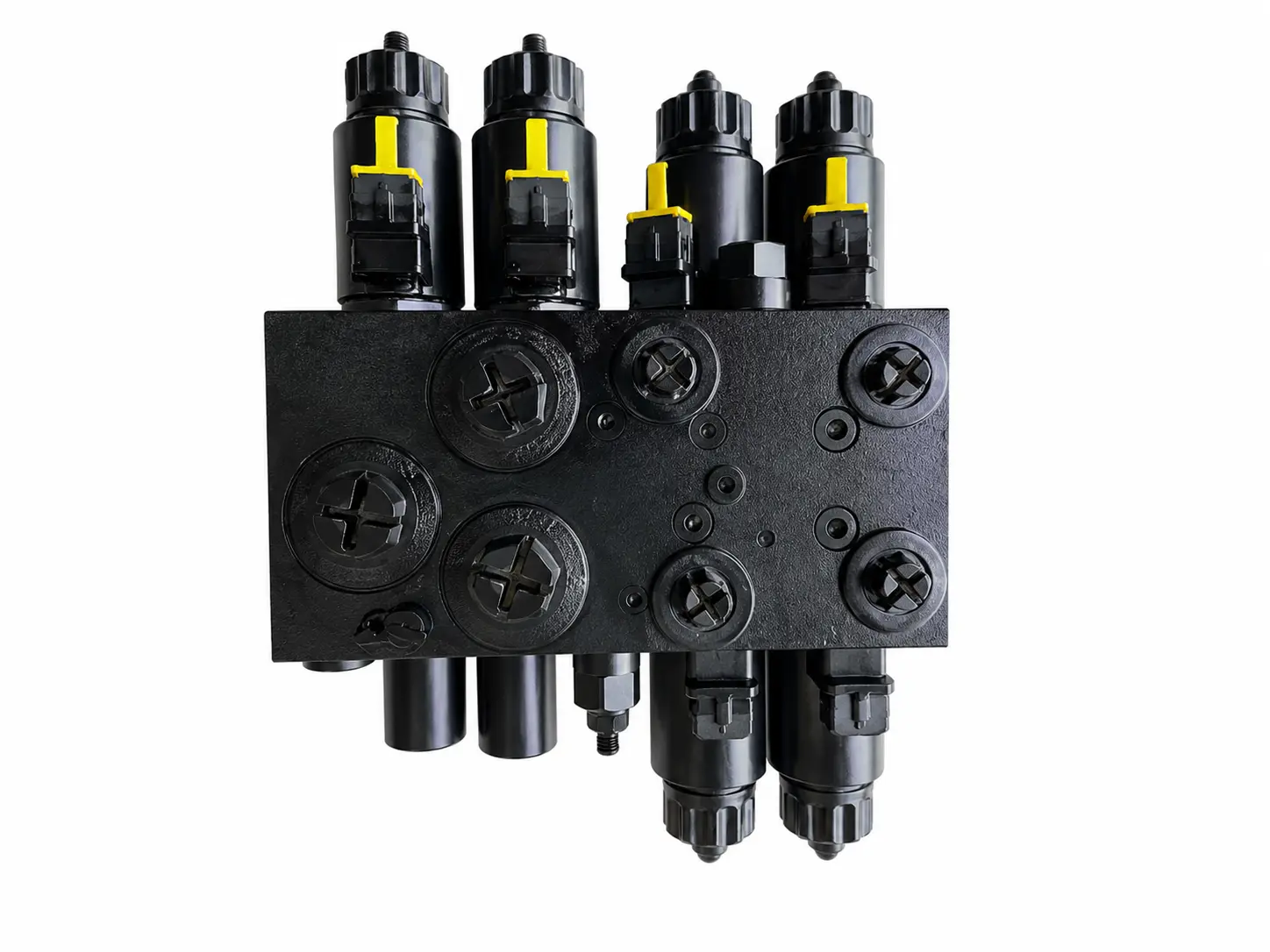

80V Full AC Drive and Hydraulic System

The N30 is equipped with an 80V full AC system for travel and hydraulic operation. The AC system supports strong power output, stable acceleration, efficient hydraulic response, and reduced routine maintenance.

For warehouses with frequent heavy pallet movement, the 80V platform helps deliver consistent performance during travel, lifting, steering, and mast rotation. It also supports lower heat generation and better long-term operating reliability.

Productiviteit

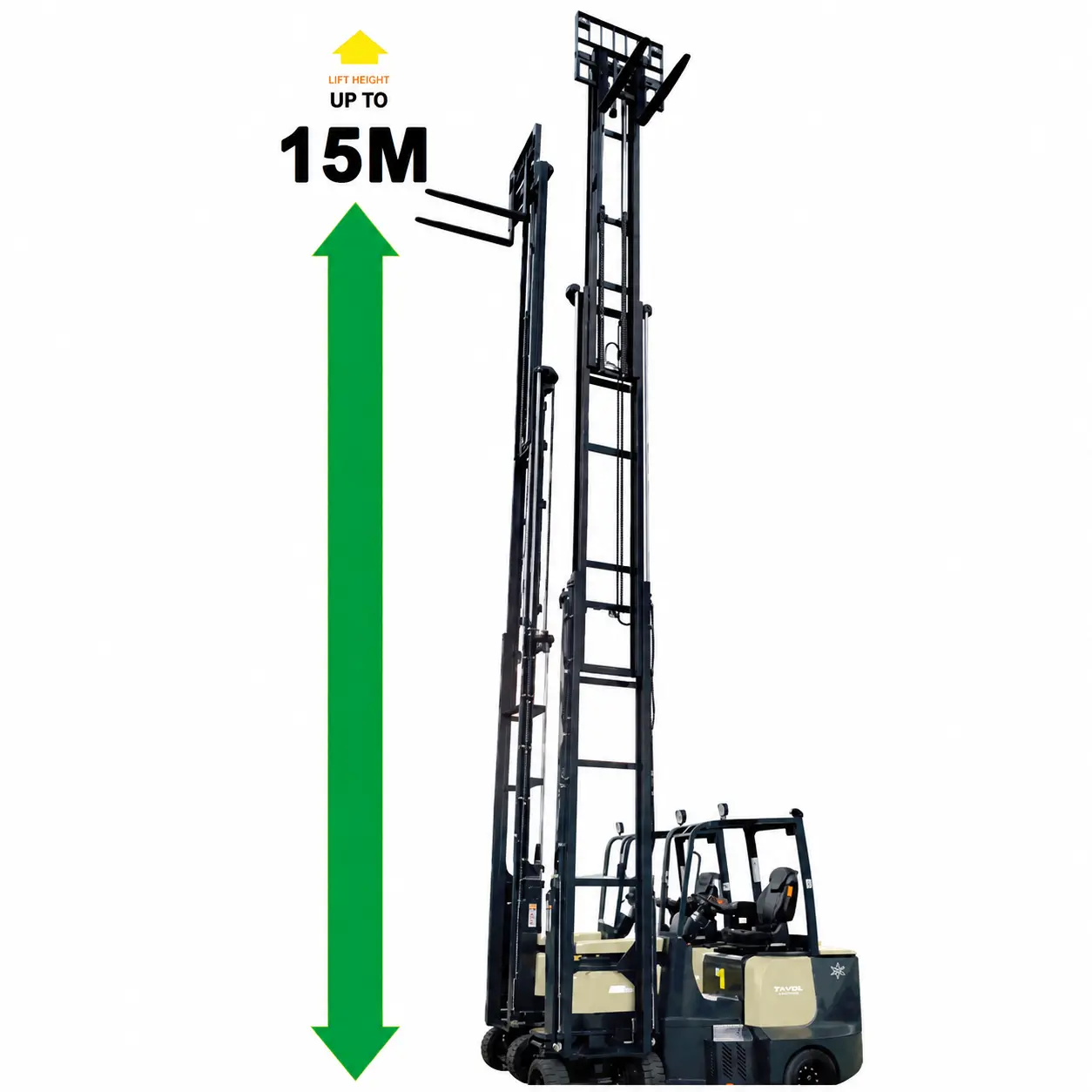

High-Bay Storage up to 15,000 mm

The N30 supports lift height options from 4,300 mm to 15,000 mm, allowing warehouses to use more vertical space for pallet storage. This is useful for high-bay racking systems where both lifting height and truck stability are important.

Akuros can help customers check mast selection according to rack beam height, pallet weight, floor flatness, building clearance, and actual storage layout.

3.0-Ton Capacity for Heavy Warehouse Loads

The N30 is designed for heavier palletized goods that require stronger load handling than standard narrow aisle models. With a 3,000 kg rated capacity and 600 mm load center, it is suitable for industrial materials, beverage pallets, cold chain goods, manufacturing components, and dense packaged products.

This makes the N30 suitable for warehouses that cannot compromise on load capacity but still need a narrow aisle storage solution.

Improve Storage Density Without Reducing Load Capacity

Many high-density storage systems focus on smaller loads. The N30 is different because it is designed to combine high storage density with 3.0-ton handling capacity. It helps warehouses reduce aisle width while still supporting heavier pallet operations.

For facilities where storage space is expensive or difficult to expand, this can reduce the cost per pallet position and improve total warehouse productivity.

Maneuverability

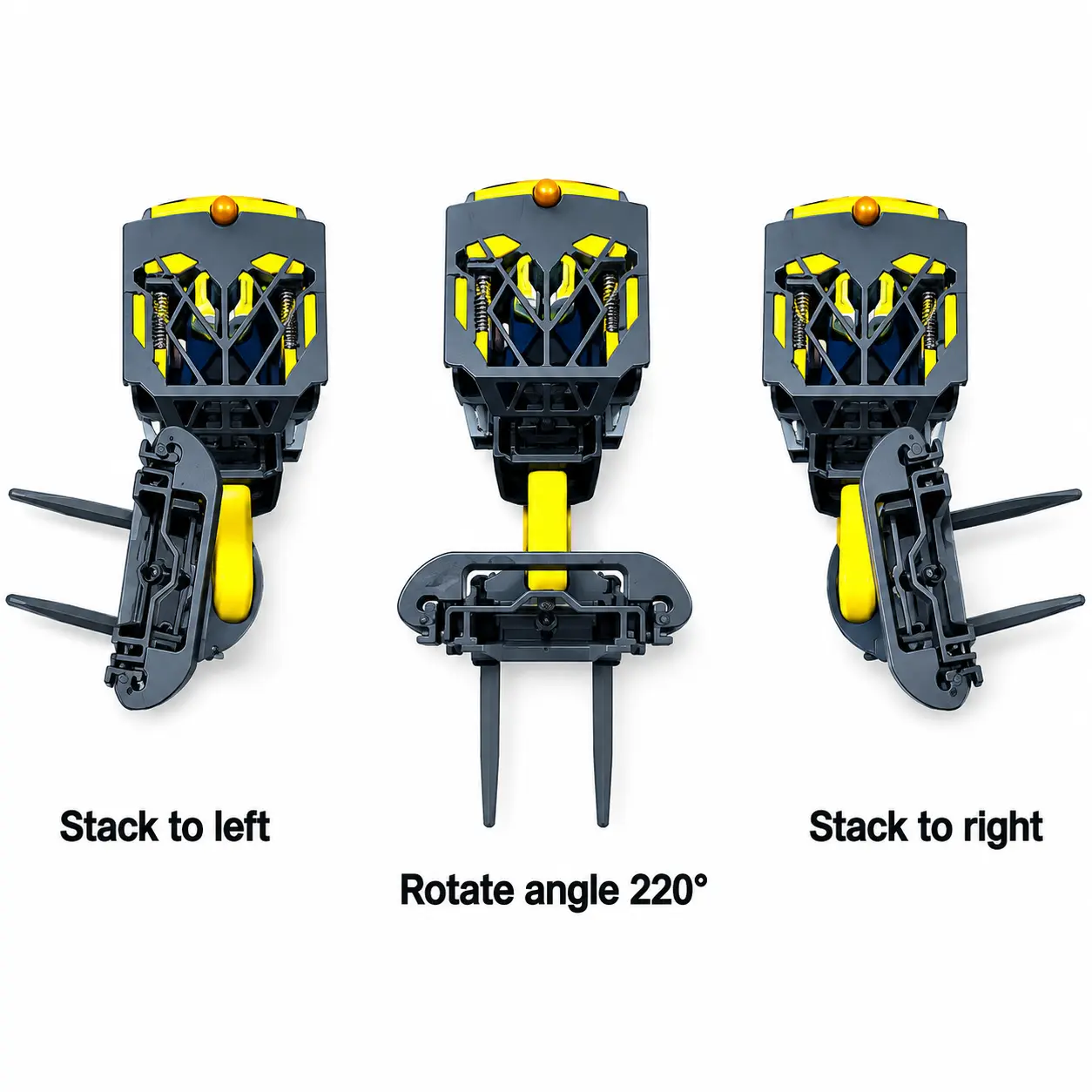

220° Mast Rotation for Two-Side Stacking

The N30 can stack to the left and right through its 220° rotating mast. This allows the truck to work inside narrow aisles without turning the whole body toward each rack face.

Minimum Net Channel Width of 2,100 mm

The N30 can work in a minimum net aisle width of 2,100 mm, depending on pallet size and warehouse layout. For a 3.0-ton capacity truck, this aisle performance helps customers combine heavy load handling with compact storage design.

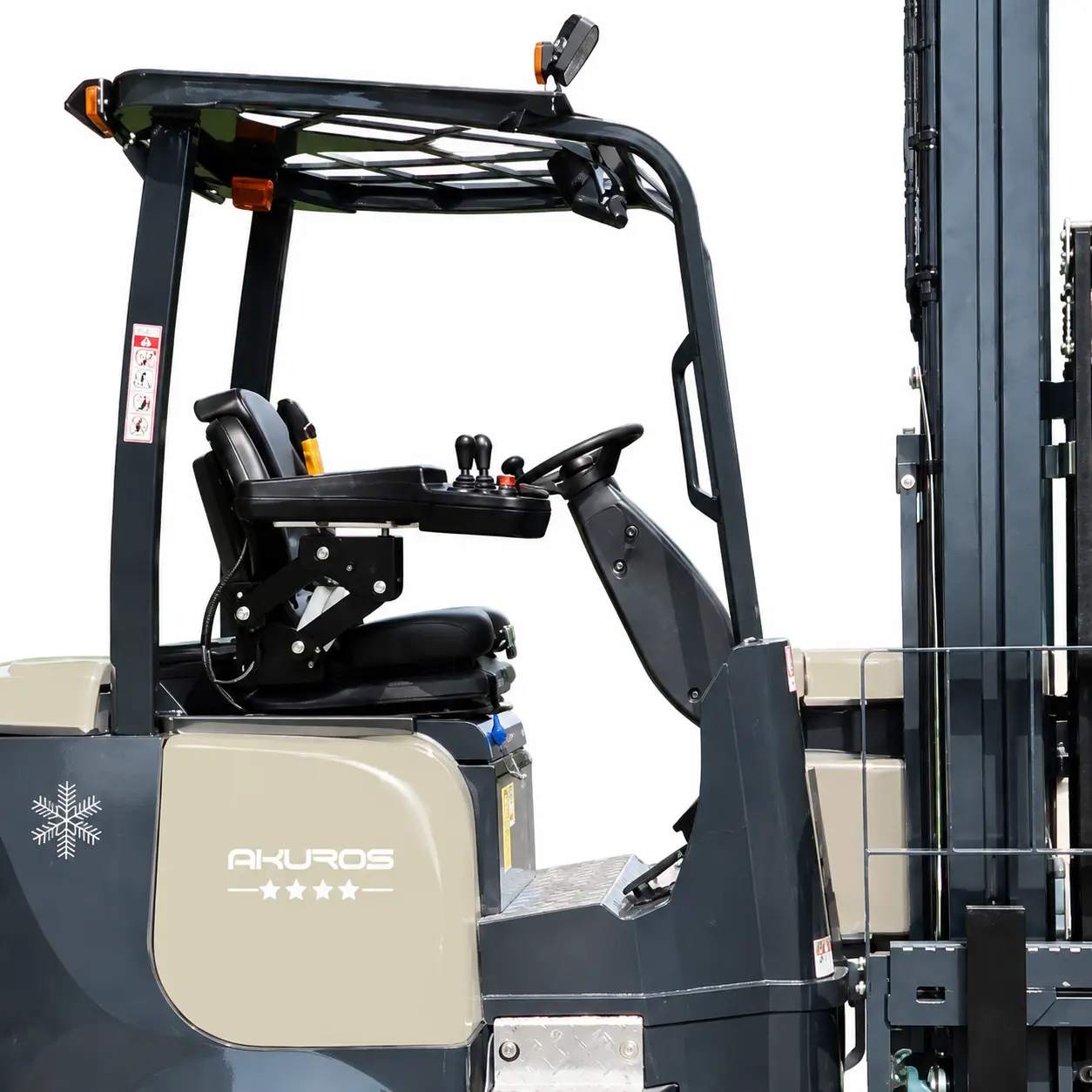

Fingertip Control Handrail

The ergonomic fingertip control handrail enables smooth, precise control of travel, steering, lifting, and rotation, improving accuracy, reducing fatigue, and supporting safer warehouse operation.

Eco-Performance

Electric Operation for Cleaner Heavy-Duty Handling

The N30 uses an electric power system, making it suitable for indoor heavy pallet handling where cleaner operation is required. It avoids on-site exhaust emissions during warehouse use and is more suitable for enclosed storage areas than fuel-powered equipment.

Efficient 80V Power Platform

The 80V power system supports efficient energy use during travel, lifting, steering, and hydraulic functions. For heavy-duty narrow aisle work, this helps balance power demand and energy efficiency.

Lower Warehouse Expansion Cost

By allowing heavy pallet handling in narrower aisles, the N30 helps warehouses use existing floor space more effectively. Instead of expanding the building or reducing load requirements, customers can improve storage density with a more space-efficient forklift solution.

Options

Lithium Battery Option

The N30 can be configured with lithium battery for faster charging, lower maintenance, and more flexible operating schedules. This option is recommended for high-frequency warehouse operation or multi-shift use.

Wireless Imaging System

The wireless imaging system helps operators see fork position, pallet entry, and rack alignment during high-level stacking. This is especially useful for tall rack systems and heavy pallets.

Double-Depth Telescopic Forks

The N30 can be equipped with double-depth telescopic forks for warehouses that need deeper pallet storage. This option can help combine narrow aisle operation with higher storage density.

Toepassingen

Koude opslag logistiek

The N30 can be configured for cold storage applications such as frozen food, seafood, dairy, meat, and refrigerated distribution warehouses. Cold storage configuration should be selected according to temperature, humidity, condensation condition, and daily working schedule.

Distributie van voedingsmiddelen en dranken

The 3.0-ton capacity makes the N30 suitable for heavier food and beverage pallets, including bottled drinks, packaged food, and dense warehouse inventory.

Heavy Pallet Narrow Aisle Warehouses

The N30 is suitable for warehouses that handle heavier pallets but still need narrow aisle storage. It helps combine 3.0-ton load capacity with compact aisle operation.
