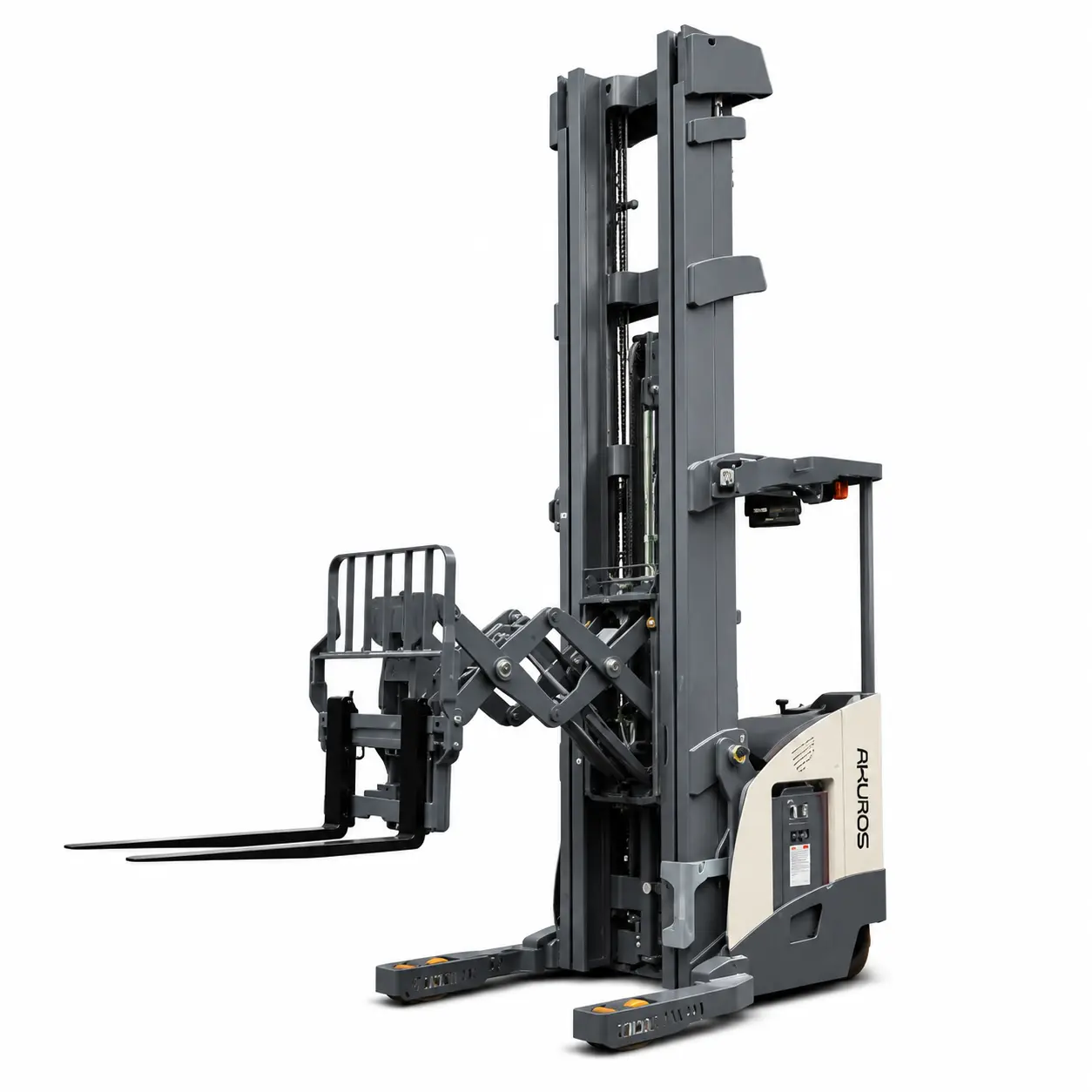

RD14D Double Scissor Reach Truck
Stand-on Electric Double Scissor Reach Truck for Double-Deep Racking and High-Density Storage
The Akuros RD14D is a stand-on electric double scissor reach truck built for double-deep racking and high-density warehouse storage. Unlike standard reach trucks used mainly for single-deep pallet positions, the RD14D uses a double scissor telescopic mechanism that allows the forks to move forward and retract flexibly. This makes it suitable for handling pallets in the second-deep position of double-deep rack systems.
With a rated load capacity of 1,450 kg and a 600 mm load center, the RD14D supports efficient pallet storage and retrieval in narrow aisle environments. Its maximum lift height can reach up to 10,160 mm, making it suitable for medium and high rack storage applications where vertical space utilization is important.
The truck uses a full AC maintenance-free system, electromagnetic braking, polyurethane wheels, proportional operation control, and a 48V/550Ah battery system. These features help improve energy efficiency, handling stability, operator comfort, and long-term warehouse productivity.
Capacity:
1.45 tons
Hauteur de levage :
up to 10,160 mm
Batterie :
48 volt / 550 Ah
Integrated Technology Options Increase Efficiency

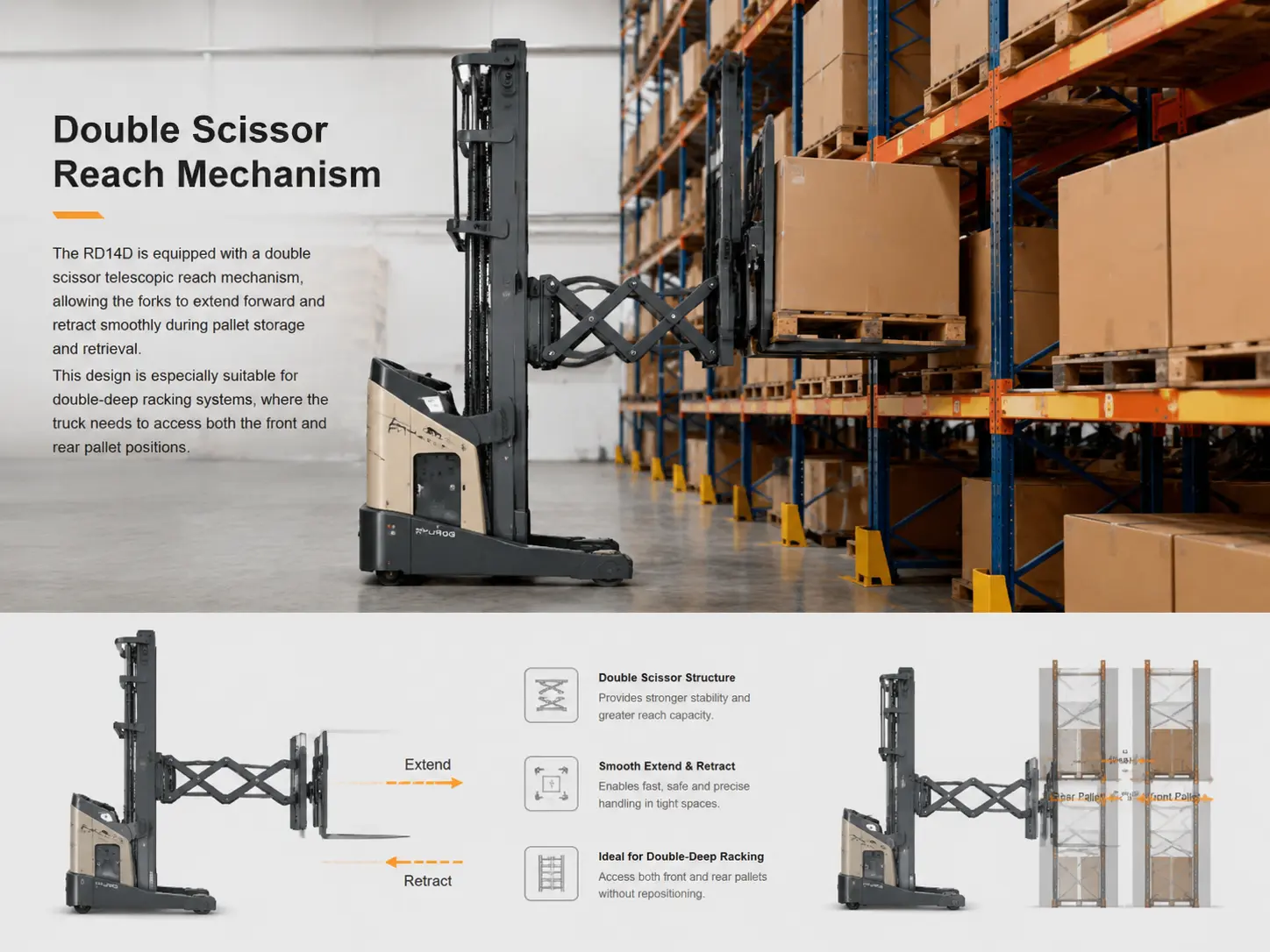

Double Scissor Reach Mechanism
The RD14D is equipped with a double scissor telescopic reach mechanism, allowing the forks to extend forward and retract smoothly during pallet storage and retrieval. This design is especially suitable for double-deep racking systems, where the truck needs to access both the front and rear pallet positions.
By supporting deeper pallet placement, the RD14D helps warehouses increase storage density without requiring wider aisles or larger floor areas. It is a practical choice for facilities that want to improve pallet positions per square meter while maintaining efficient material flow.

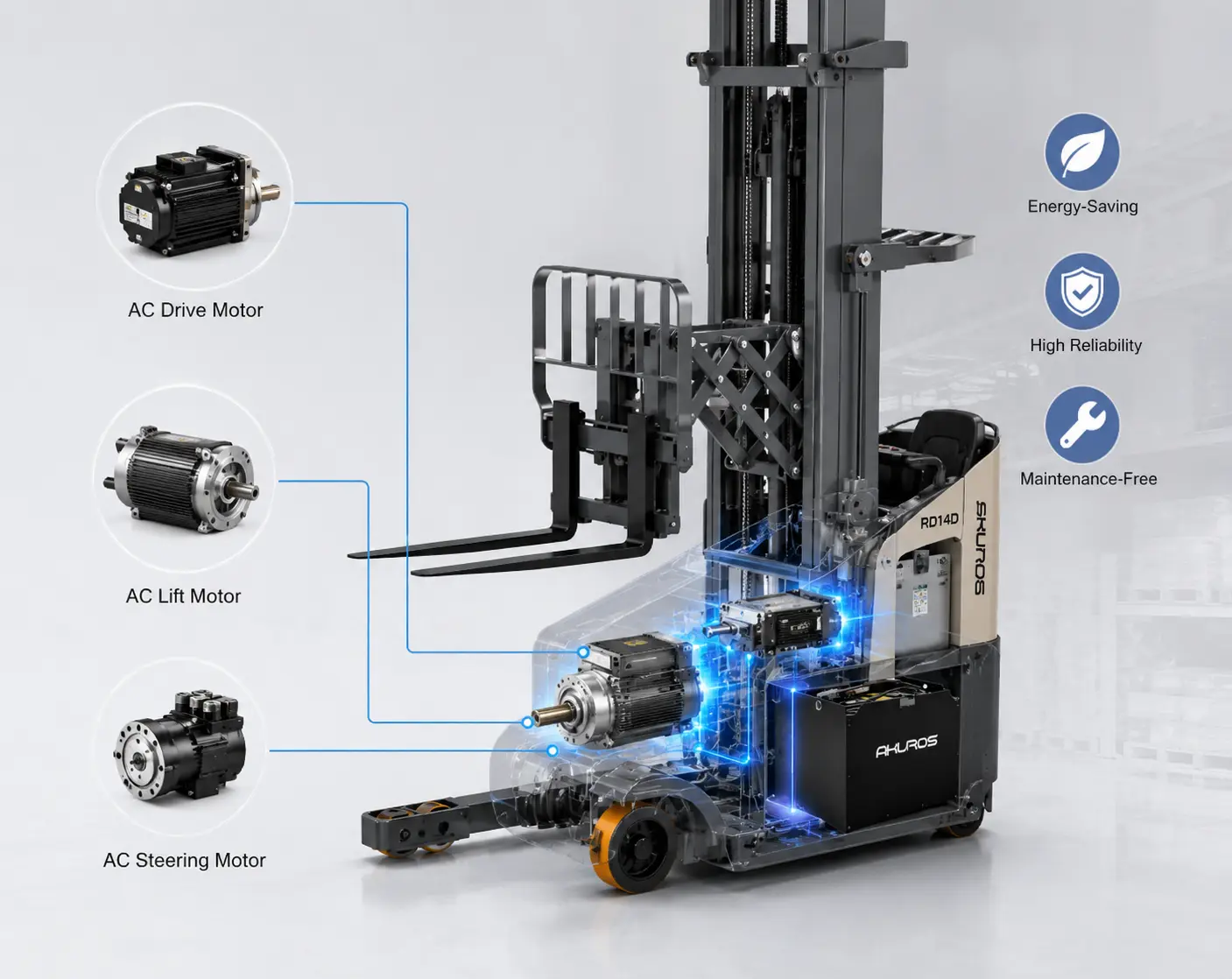

Full AC Maintenance-Free System
The RD14D uses a full AC electric system for driving, lifting, and steering functions. This system is designed for energy-saving operation, efficient power output, and reduced maintenance requirements compared with traditional systems.
The AC drive system helps provide stable travel performance, smooth acceleration, and efficient energy use during daily warehouse operations. For high-frequency pallet handling, this supports more reliable operation and better long-term equipment availability.
Productivité

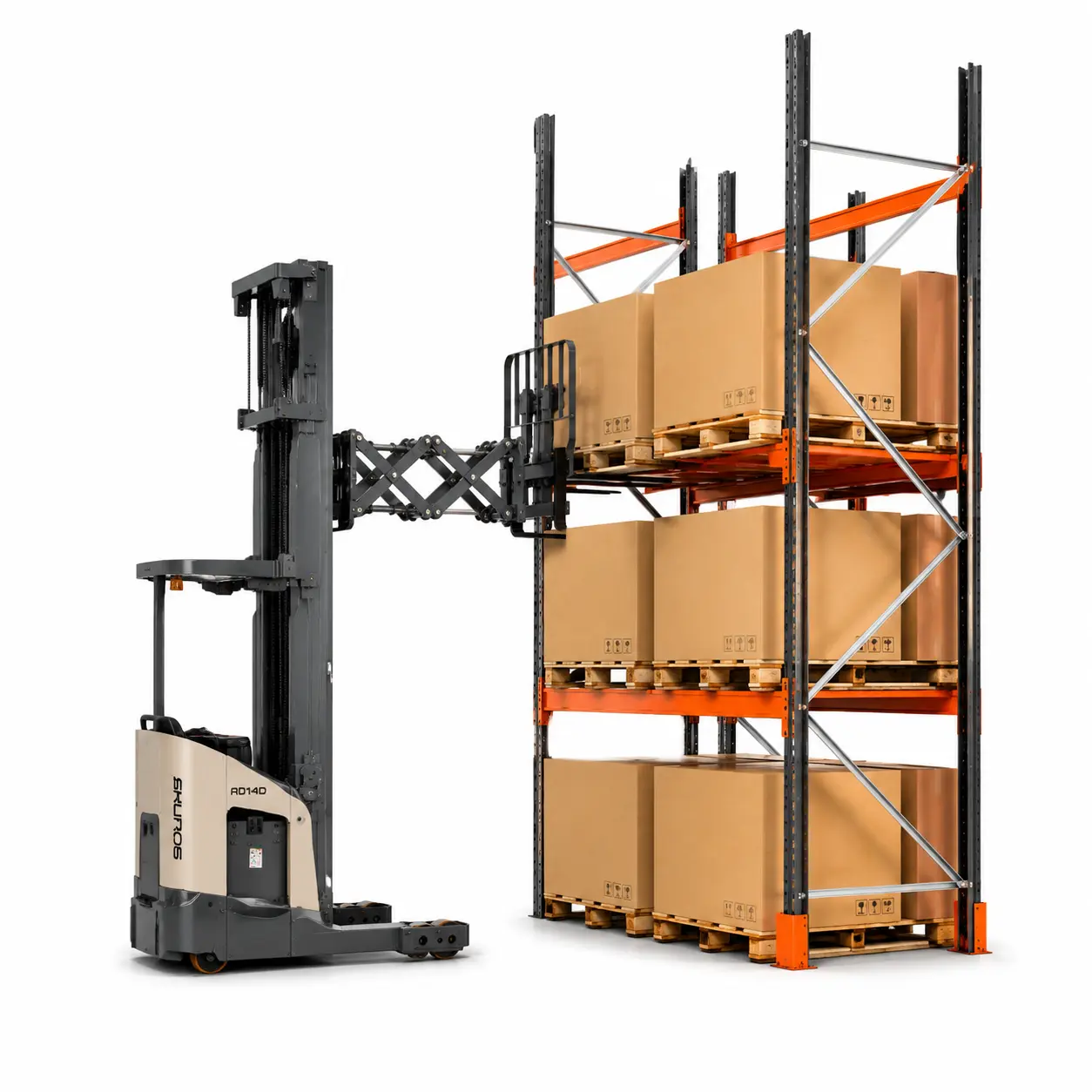

Built for Double-Deep Racking
The RD14D is designed for double-deep pallet storage applications. Its double scissor reach mechanism allows operators to handle pallets in deeper rack positions, helping warehouses increase storage capacity compared with standard single-deep pallet racking layouts.
For logistics centers, cold storage warehouses, food distribution centers, and high-density storage facilities, this truck helps improve rack utilization while reducing the need for larger warehouse expansion.

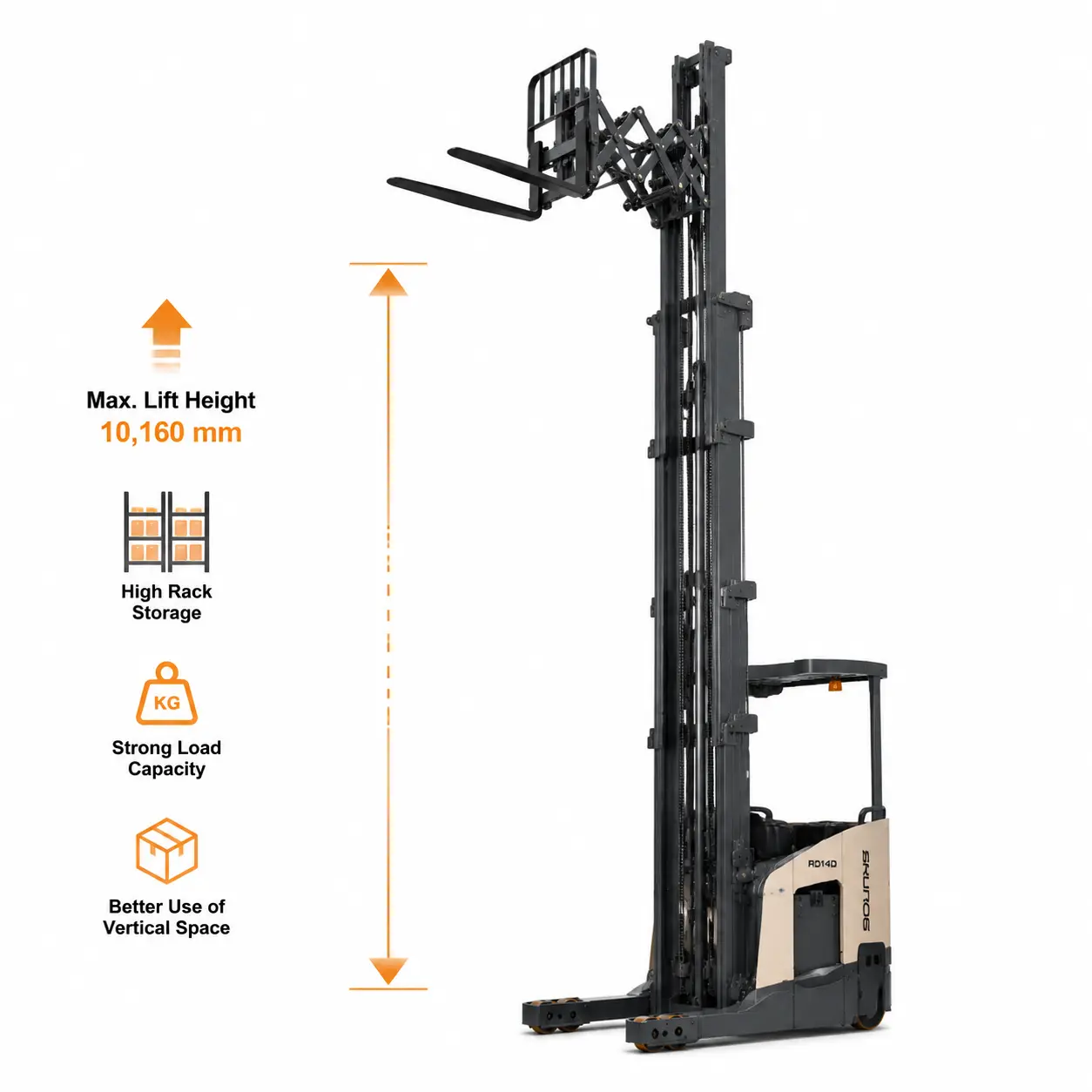

High Lift Performance
With lift height options up to 10,160 mm, the RD14D supports medium and high rack storage applications. This allows warehouses to make better use of vertical space and improve pallet storage density.
The truck is suitable for facilities where rack height, pallet weight, aisle width, and storage efficiency must be carefully matched. Akuros can help customers check the right mast configuration according to rack beam height and pallet load requirements.

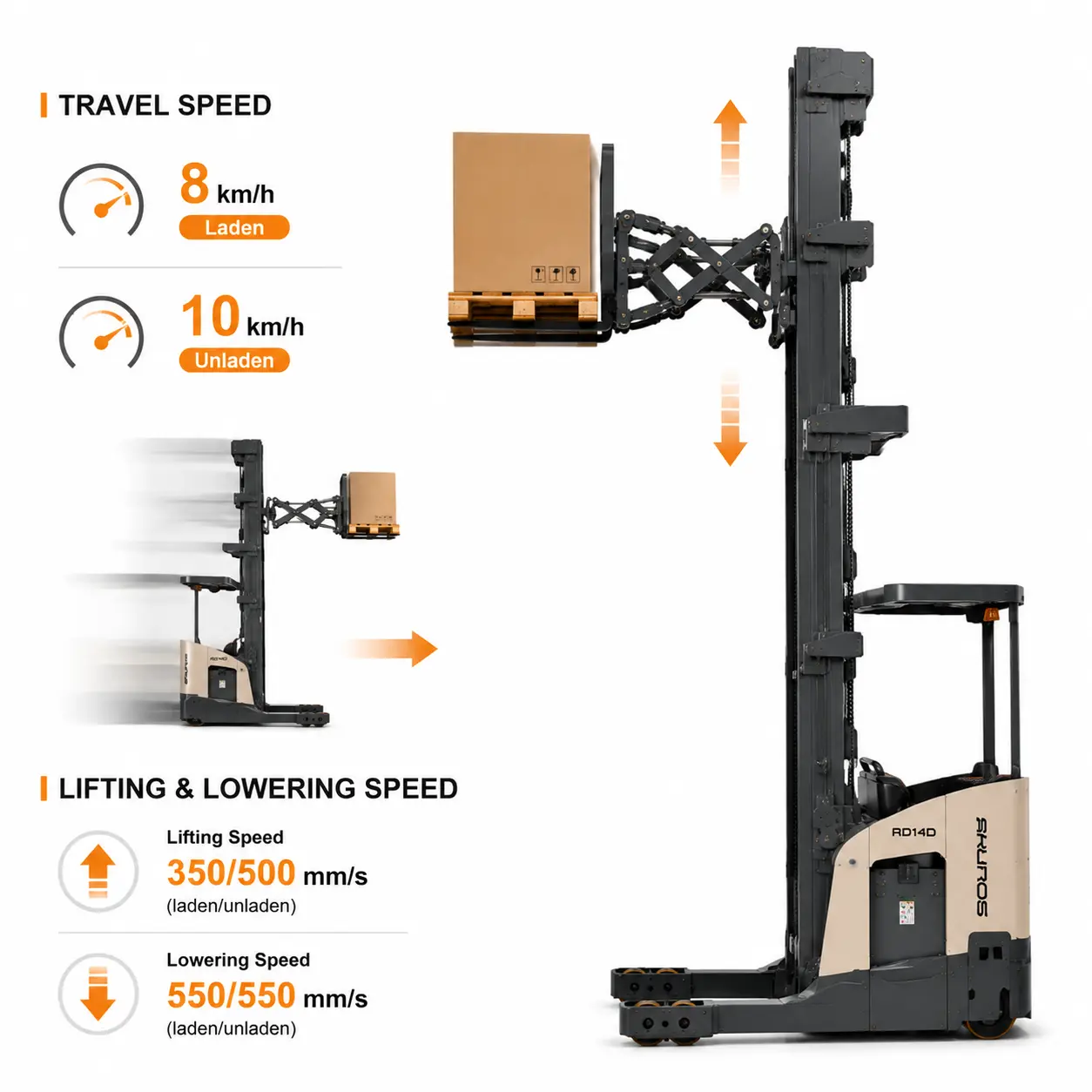

Efficient Travel and Lifting Speed
The RD14D offers travel speeds of 8 km/h laden and 10 km/h unladen, helping operators move efficiently between storage locations. Its lifting and lowering performance supports smooth pallet handling during daily stacking, retrieval, and replenishment tasks.
For warehouses with frequent pallet movement, stable travel speed and responsive lifting control help improve operating rhythm and reduce unnecessary handling time.
Eco-Performance
Energy-Saving Electric Drive
The RD14D’s full AC electric system is designed for efficient energy use during travel, lifting, steering, and reach operations. Compared with fuel-powered handling equipment, electric operation provides cleaner indoor performance and lower on-site emissions.
Low-Noise Indoor Operation
Electric drive technology helps reduce working noise inside warehouse environments. This makes the RD14D suitable for indoor logistics centers, distribution warehouses, production storage areas, and cold chain facilities where cleaner and quieter operation is preferred.
Maintenance-Free AC System
The full AC maintenance-free system helps reduce routine service needs and supports more stable long-term operation. For fleet managers, this can help reduce maintenance pressure and improve equipment availability in daily warehouse use.
Ergonomics
The RD14D uses a stand-on operation design, allowing operators to enter and exit quickly during frequent warehouse handling tasks. This design is suitable for operations that require repeated pallet storage, retrieval, and short-distance travel.
The mast and operator position are designed to support clear visibility during pallet handling. Better visibility helps operators align forks, enter pallets accurately, and position goods more safely in single-deep or double-deep rack locations.
The proportional operation system supports smoother control during travel, lifting, lowering, and fork reach movement. This helps operators handle pallets more precisely, especially when working at height or positioning loads in deeper rack locations.
Options
Mast Height Options
The RD14D can be configured with different mast heights according to warehouse rack height and lifting requirements. Lift height options can reach up to 10,160 mm, making it suitable for high-density storage and high rack applications.
Battery and Charging Configuration
The RD14D uses a 48V/550Ah battery system. Battery and charger configuration can be selected according to daily working hours, charging schedule, and local power supply conditions.
Fork and Pallet Matching
The standard fork size is 1070×100×40 mm. Fork size, pallet type, pallet load, and rack depth should be checked before final configuration, especially for double-deep racking systems.
Applications
Rayonnage à palettes double profondeur
The RD14D is especially suitable for double-deep pallet racking systems. Its double scissor reach mechanism allows operators to access deeper pallet positions, helping warehouses increase storage density and improve pallet capacity.
High-Density Warehouse Storage
For warehouses that need more pallet positions within limited floor space, the RD14D supports efficient vertical and deep storage. It helps make better use of rack height and warehouse depth.
Cold Storage Warehouses
For cold chain warehouses, frozen food storage, seafood storage, and refrigerated distribution centers, the RD14D can be evaluated with suitable cold storage configuration according to working temperature, humidity, and daily usage.
