RD15 Double Deep Reach Truck

Stand-on Electric Double Scissor Reach Truck for Double-Deep Racking and High-Density Storage

Overview

Specifications

Overview

Specifications

Integrated Technology Options Increase Efficiency

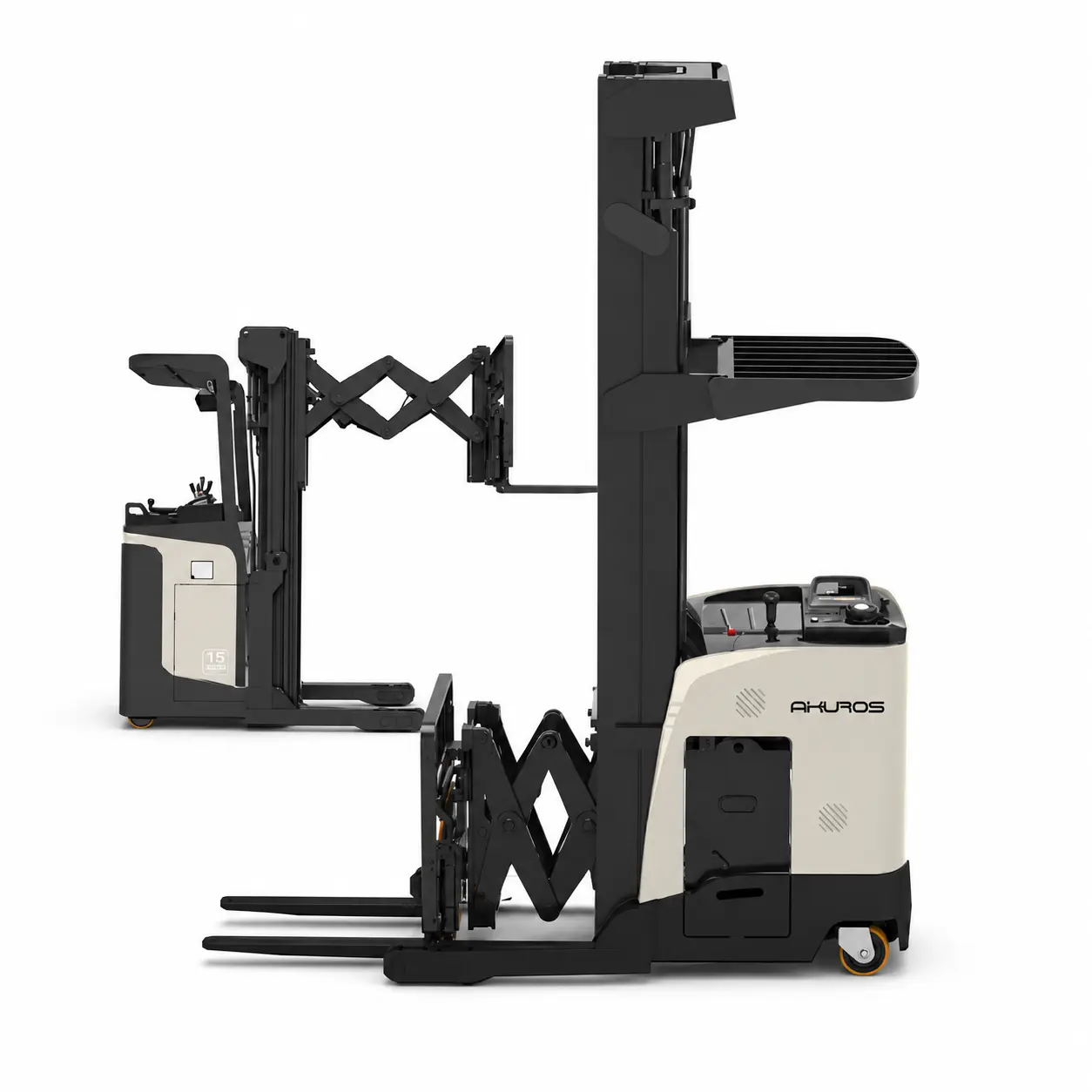

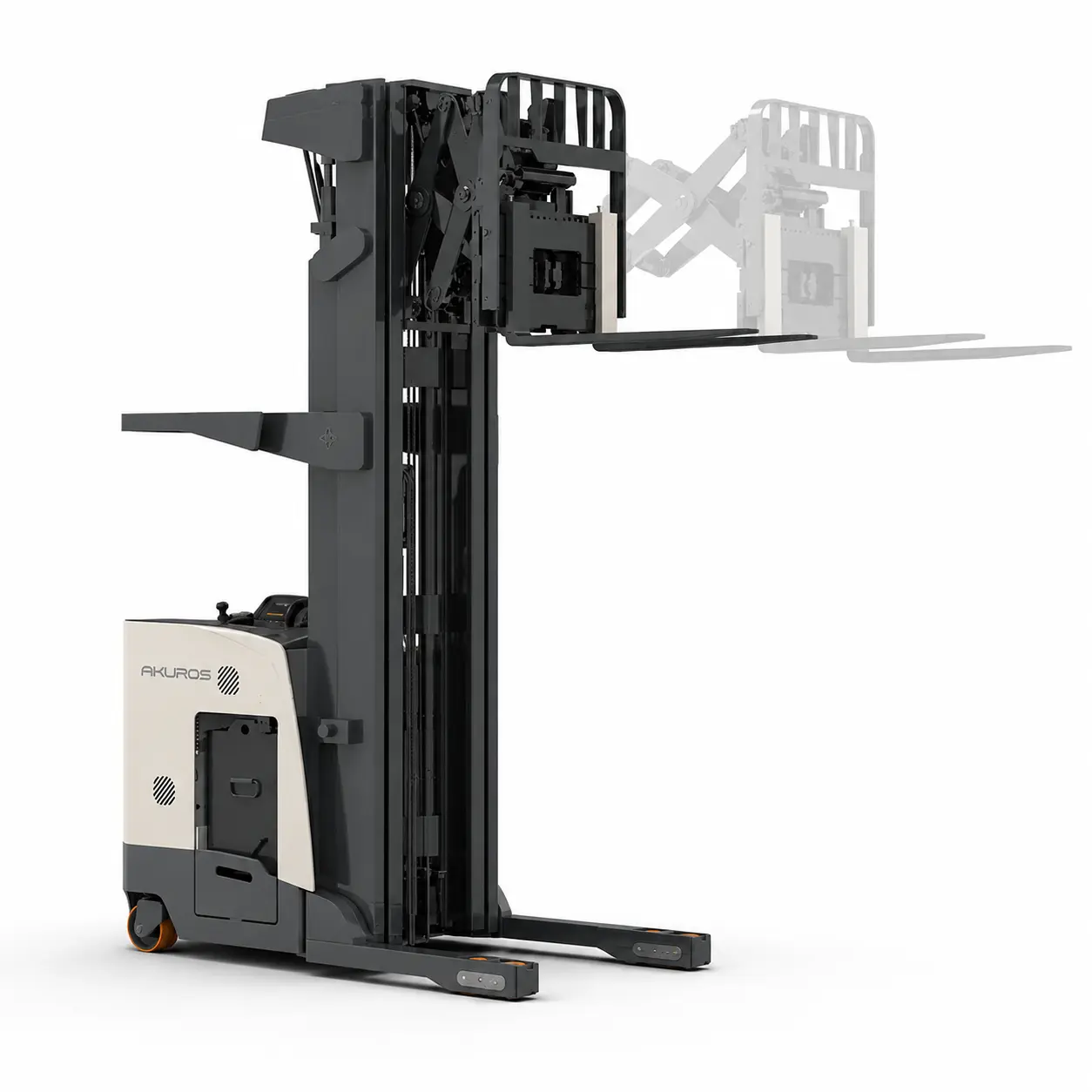

Deep Reach Function for High-Density Storage

The RD15 is designed with a reach mechanism that allows the forks to move forward into rack positions and retract smoothly after pallet handling. This function helps the truck handle pallets in deeper storage positions while keeping the truck body stable in the aisle.

For warehouses using double-deep racking or high-density pallet storage, the RD15 helps increase storage capacity without requiring larger floor space. It is a practical solution for facilities that need better pallet density, higher rack utilization, and more efficient warehouse flow.

Electric Drive and Lift System

The RD15 uses an electric drive and lift system for indoor warehouse operation. Electric power supports cleaner operation, lower working noise, and smoother control compared with fuel-powered equipment.

The electric system also supports stable travel, lifting, lowering, braking, and reach movement during daily pallet storage and retrieval. This helps operators work more efficiently in narrow aisles, rack areas, and logistics staging zones.

Productividad

Built for Double-Deep Racking

The RD15 is suitable for double-deep pallet racking and high-density storage layouts. Its reach function helps operators access deeper pallet positions, allowing warehouses to store more goods within the same floor area.

For logistics centers, cold storage warehouses, food distribution centers, and high-volume storage facilities, this truck helps improve rack utilization and reduce the need for warehouse expansion.

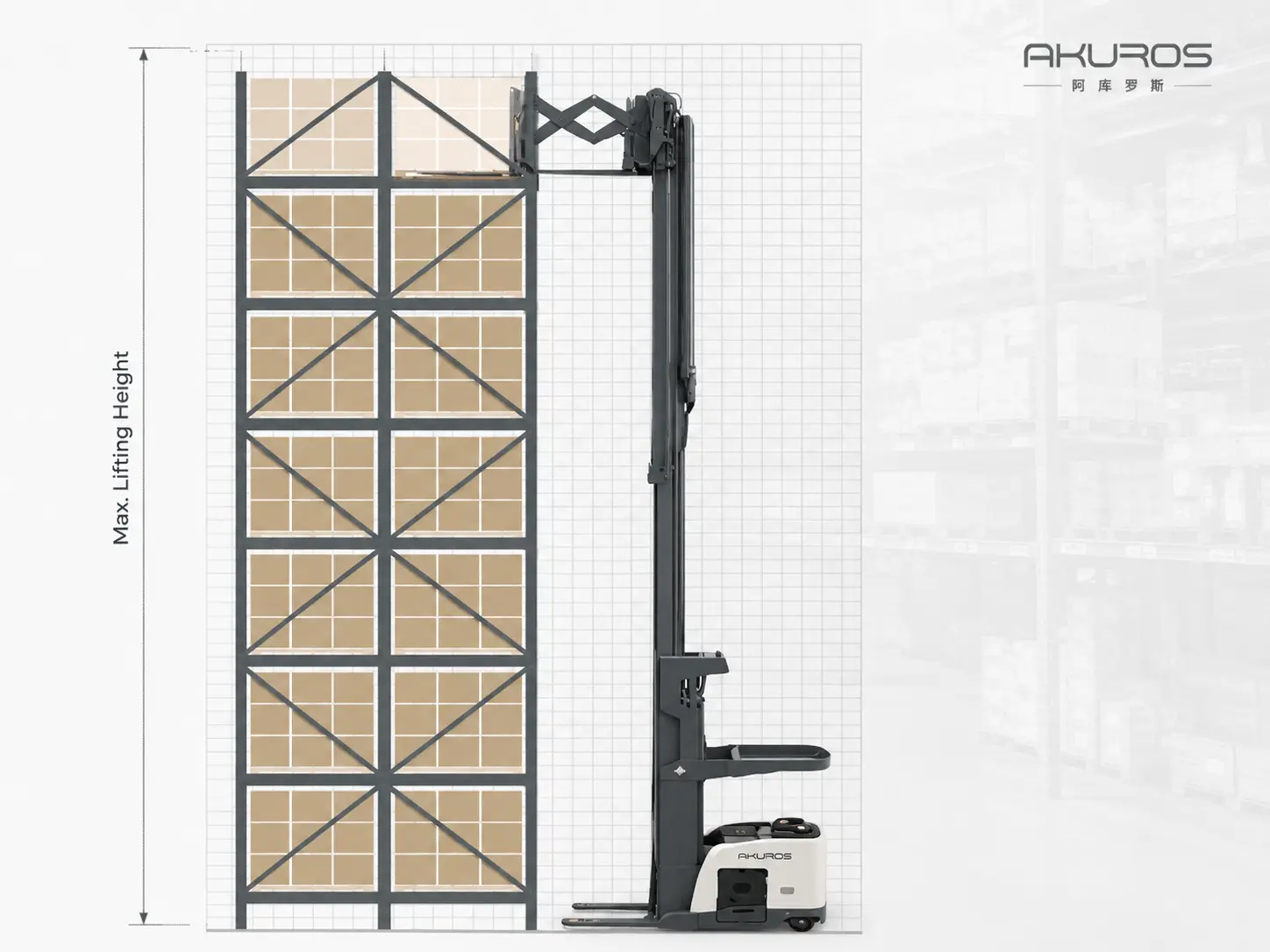

High Lift Performance

With a maximum lift height of 10,695 mm, the RD15 supports high rack storage applications. This allows warehouses to make better use of vertical space and improve pallet storage density.

The truck is suitable for facilities where rack height, pallet weight, aisle width, and storage efficiency must be carefully matched. Akuros can help customers check the right configuration according to rack beam height, pallet load, and warehouse layout.

Strong Load Capacity for Daily Warehouse Use

With a 1,500 kg rated load capacity and 600 mm load center, the RD15 is suitable for a wide range of palletized goods. It can support daily handling of food products, packaged materials, industrial components, cold chain goods, and general warehouse inventory.

Eco-Performance

Battery-Powered Indoor Operation

The RD15 uses a 48V/500Ah battery system, making it suitable for indoor warehouse environments where clean and efficient operation is required. Battery-powered operation helps avoid on-site exhaust emissions during use.

Lower Noise for Enclosed Warehouses

Electric operation helps reduce working noise in indoor storage areas, logistics centers, cold storage warehouses, and production facilities. This supports a cleaner and more comfortable warehouse working environment.

Efficient Energy Use

The electric drive and lifting system supports efficient energy use during travel, lifting, lowering, and reach operation. For warehouses with repeated pallet handling tasks, this helps support stable daily operation and better long-term equipment planning.

Ergonomics

Stand-On Operation for Fast Warehouse Handling

The RD15 uses a stand-on operating platform, allowing operators to enter and exit quickly during frequent warehouse handling tasks. This design is suitable for operations that require repeated pallet storage, retrieval, replenishment, and short-distance movement.

Clear Visibility for Pallet Positioning

The mast structure and operator position are designed to support visibility during pallet handling. Better visibility helps operators align forks, enter pallets accurately, and place goods more safely in high rack or deep rack positions.

Comfortable Control for Repeated Operation

The RD15 is designed for daily warehouse use where operators need responsive travel, lifting, lowering, braking, and reach control. Smooth control helps improve pallet positioning accuracy and reduce operator fatigue during repeated storage tasks.

Options

Lift Height Selection

The RD15 can be selected for high rack storage applications with a maximum lift height of 10,695 mm. Lift height should be matched with rack beam height, pallet load, building clearance, and warehouse storage plan.

Battery and Charging Configuration

The RD15 uses a 48V/500Ah battery system. Battery and charger configuration can be selected according to daily working time, charging schedule, and local power supply condition.

Cold Storage Configuration

For cold storage or humid warehouse environments, Akuros can check suitable low-temperature protection, battery configuration, and application requirements according to working temperature, humidity, and daily operating schedule.

Aplicaciones

Estanterías de palets de doble profundidad

The RD15 is suitable for double-deep pallet racking systems where warehouses need to increase storage density and improve pallet positions within limited floor space.

High-Bay Warehouse Storage

With a maximum lift height of 10,695 mm, the RD15 supports high rack storage applications and helps warehouses make better use of vertical space.

Almacenes de frío

For cold chain warehouses, frozen food storage, seafood storage, and refrigerated distribution centers, the RD15 can be evaluated with suitable cold storage configuration according to working temperature and daily use.
